Wuxi I-core Elec

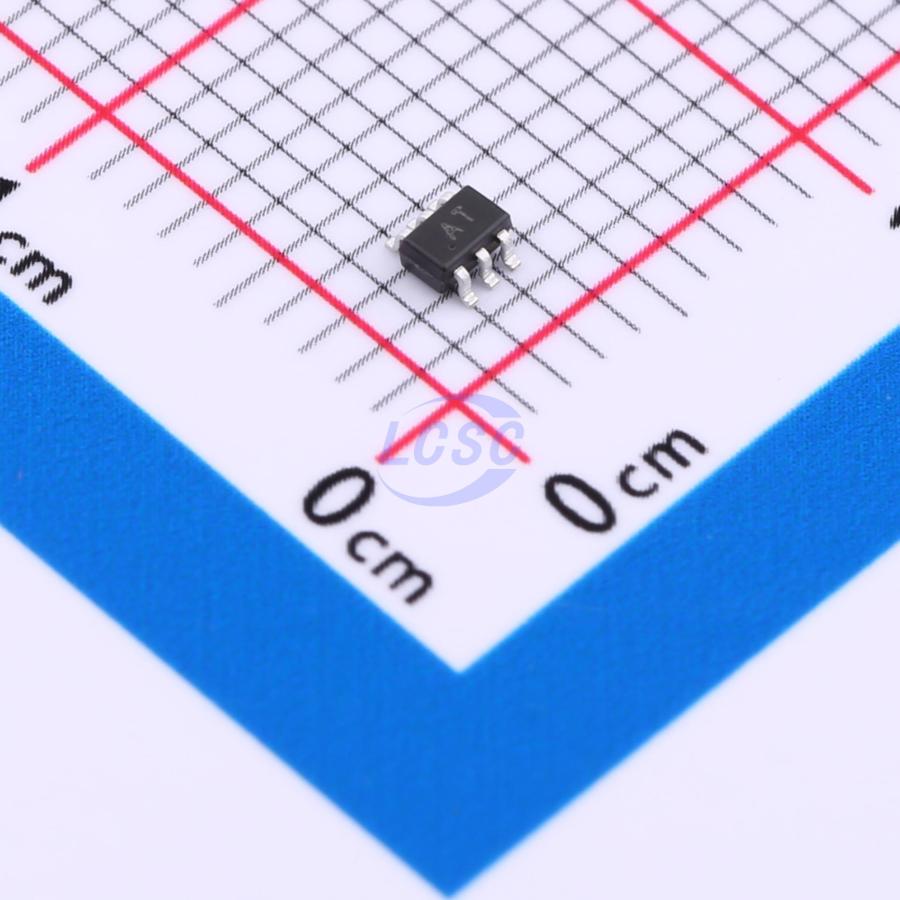

AIP74LVC1G157GC363.TR

1 1.65V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers

SOT-363RoHSActive

Single 2-input Multiplexer

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AIP74LVC1G157GC363.TR
Store part #: C4945068
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C4945068

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹15.17	₹151.70
100+	₹11.74	₹1,174.00
300+	₹10.02	₹3,006.00
3,000+	₹8.73	₹26,190.00
6,000+	₹7.70	₹46,200.00
9,000+	₹7.17	₹64,530.00

Quantity (min 10, multiples of 10)

10 × ₹15.17

₹151.70

excl. GST

₹179.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AIP74LVC1G157GC363.TR

₹151.70 for 10 + GST

Specifications

Features: Level shifting;Power-off isolation
Operating Temperature: -40℃~+105℃
Number of Channels: 1
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 4ns

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

The AiP74LVC1G157 is a single 2-input multiplexer which select data from two data inputs (I0 and I1) under control of a common data select input (S). The state of the common data select input determines the particular register from which the data comes. The output (Y) presents the selected data in the true (non-inverted) form. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V applications. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
