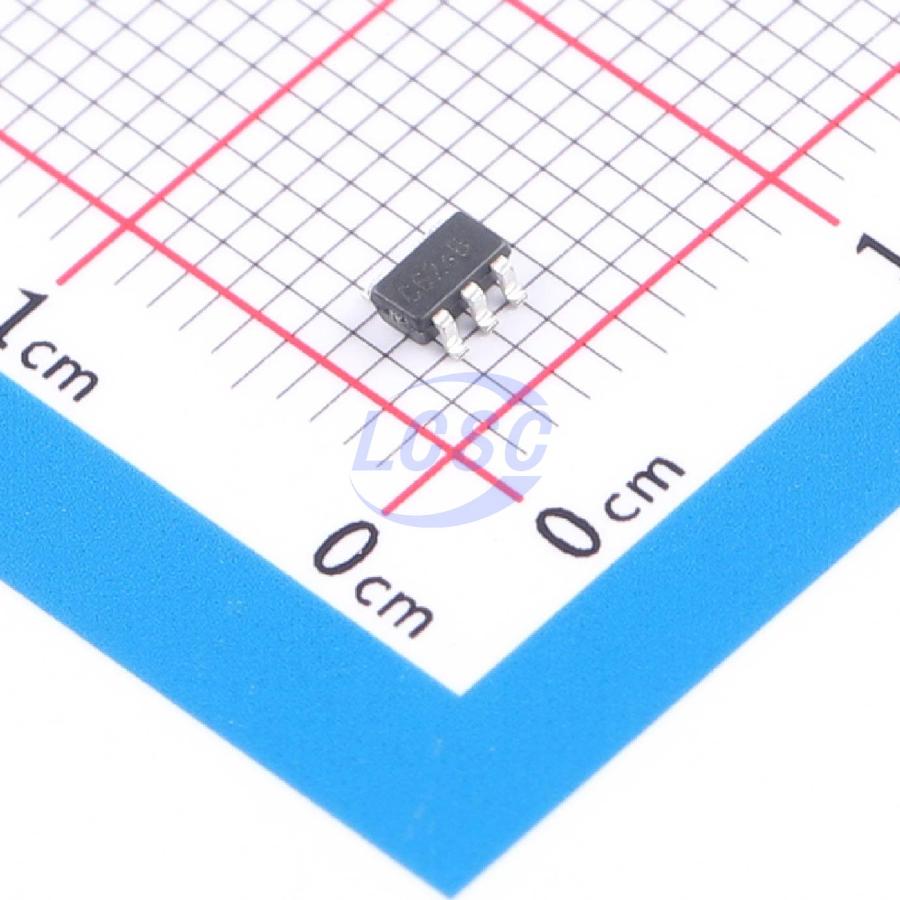

DIODES

AL8807AW5-7

700kHz Buck 1 DC-DC 1A 6V~36V SOT-25 LED Drivers ICs RoHS

SOT-25ROHS CompliantActive

High Efficiency Low EMI Wide Analog Dimming Range 36V 1A/1.3A Buck LED Driver

Manufacturer: DIODES
Manufacturer part #: AL8807AW5-7
Store part #: C2678580
Package / case: SOT-25
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,997 in stock

#C2678580

Stock & price checked 20 h ago

Quantity	Unit price	Pack price
1+	₹161.22	₹161.22
10+	₹149.05	₹1,490.50
30+	₹142.09	₹4,262.70
100+	₹134.50	₹13,450.00
500+	₹131.02	₹65,510.00
1,000+	₹129.50	₹1,29,500.00

Quantity (min 1)

1 × ₹161.22

₹161.22

excl. GST

₹190.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AL8807AW5-7

₹161.22 for 1 + GST

Specifications

Features: LED open-circuit protection;Over-Temperature Protection (OTP);Short Circuit Protection
Frequency - Switching: 700kHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Topology: Buck
Number of Channels: 1
Type: DC-DC
Output Current: 1A
Voltage - Input(DC): 6V~36V
Constant Current Accuracy: 5%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.03 g

Overview

The AL8807A is a step- down DC/DC converter designed to drive LEDs with a constant current. The device can drive up to 9 white high brightness LEDs in series from a voltage source of 6V to 36V. The AL8807A has an extended CTRL pin voltage range; increasing its analog dimming range to greater than 10:1. The improved analog dimming range makes it suitable for a variety of lighting applications requiring wide analog dimming ranges. The AL8807A switches at frequency up to 1MHz with controlled rise and fall times to reduce EMI. This allows the use of small size external components, hence minimizing the PCB area needed. Maximum output current of AL8807A is set via an external resistor connected between the VIN and SET input pins. Over Temperature Protection is incorporated so that should a fault occur the device will automatically shut- down and only restart when its junction temperature has cooled down.

Applications

General Illumination Lamps
12V Powered LED Lamps
Wide Analog Dimming Range LED Lamps

Key features

LED Driving Current up to 1A/1.3A
Better than 5% Accuracy
High Efficiency Up to 96%
Optimally Controlled Switching Speeds
Operating Input Voltage from 6V to 36V
Wide Analog Input Range for Dimming Control (>10:1)
Built-in Protection Features:
Open-Circuit LED protection
LED Chain Short Circuited
Over-Temperature Protection
MSOP-8EP and SOT25: Available in "Green" Molding Compound (No Br, Sb) with lead Free Finish/ RoHS Compliant
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. "Green" Device
