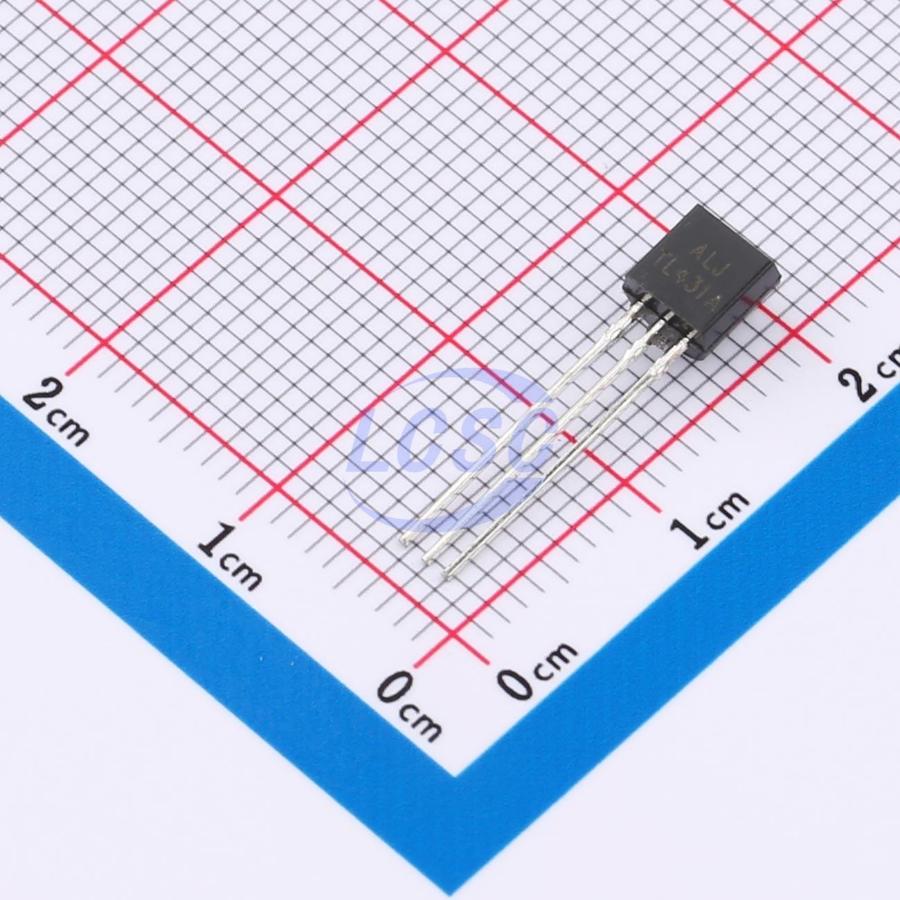

ALJTL431A
Voltage Reference IC Adjustable 2.495V~40V ±2% 100mA TO-92
TO-92ROHS CompliantActive
TO-92 Encapsulate Adjustable Reference Source
- Manufacturer
- ALJ
- Manufacturer part #
- ALJTL431A
- Store part #
- C22751471
- Package / case
- TO-92
- Category
- Voltage Reference
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,440 in stock
#C22751471
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.88 | ₹77.60 |
| 200+ | ₹3.03 | ₹606.00 |
| 1,000+ | ₹2.58 | ₹2,580.00 |
| 2,000+ | ₹2.30 | ₹4,600.00 |
| 10,000+ | ₹2.06 | ₹20,600.00 |
| 20,000+ | ₹1.93 | ₹38,600.00 |
20 × ₹3.88
₹77.60
excl. GST
₹91.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
ALJTL431A
₹77.60 for 20 + GST
Specifications
- Output Voltage
- 2.495V
- Tolerance
- ±2%
- Minimum Cathode Current for Regulation
- 500uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -60℃~+125℃
- Features
- Built-in temperature sensor
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.202 g
Overview
Key features
- The output voltage can be adjusted to 40V
- Low dynamic output impedance, its typical value is 0.2Ω
- Trapping current capability is 1 to 100mA
- Low output noise voltage
- Fast on -state response
- The effective temperature compensation in the working range of full temperature
- The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/°C
- ESD Tolerance (human body model) 4000V
- Operating Temperature Range -60~+125 °C
