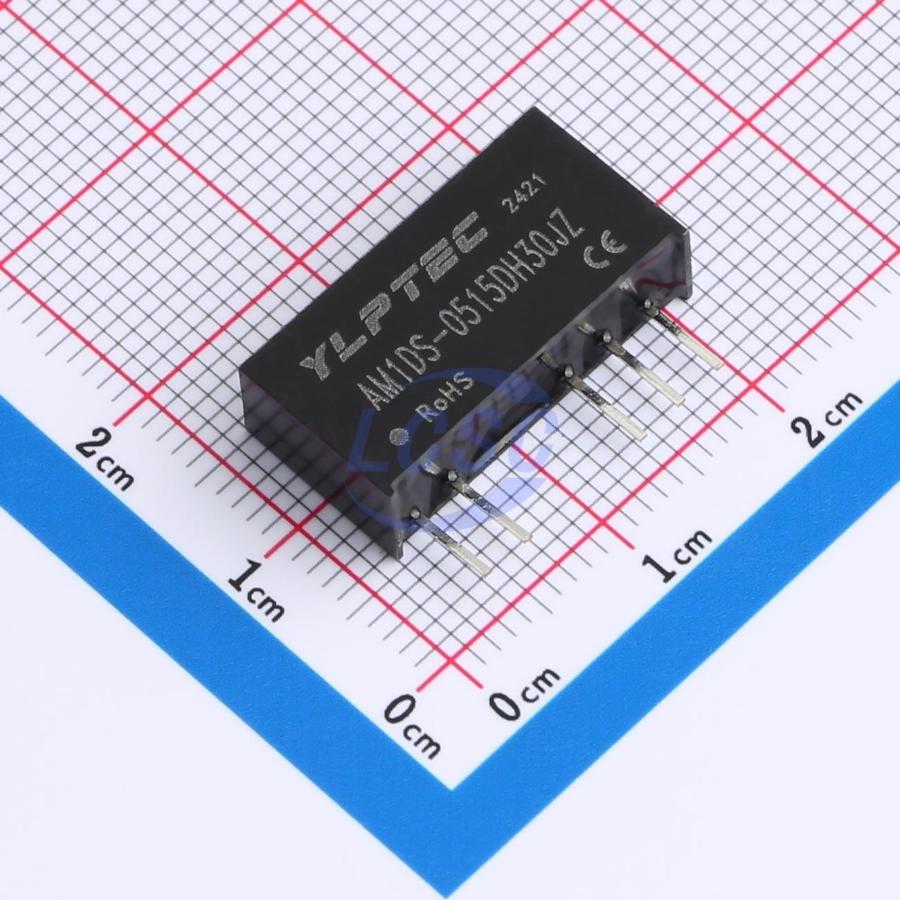

AM1DS-0515DH30JZ YLPTEC

AM1DS-0515DH30JZ

Isolated Module DC DC Converter Boost 2 Output ±15V ±34mA 4.5V~5.5V Input

SIP,19.5x6mmRoHSActive

1W isolated non-regulated positive and negative dual-output DC/DC module power supply with fixed voltage input

Manufacturer: YLPTEC
Manufacturer part #: AM1DS-0515DH30JZ
Store part #: C22372363
Package / case: SIP,19.5x6mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C22372363

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹543.20	₹543.20
10+	₹464.43	₹4,644.30
25+	₹417.59	₹10,439.75
100+	₹370.12	₹37,012.00
500+	₹348.27	₹1,74,135.00
1,000+	₹338.40	₹3,38,400.00

Quantity (min 1)

1 × ₹543.20

₹543.20

excl. GST

₹640.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 25 per tube

AM1DS-0515DH30JZ

₹543.20 for 1 + GST

Specifications

Number of Outputs: 2
Iout: 34mA
Output Voltage: ±15V
Ripple Noise: 30mVp-p
Frequency - Switching: 100kHz
Operating Temperature: -40℃~+85℃
Isolation Voltage(Vrms): 3kV
Voltage - Supply: 4.5V~5.5V
Conversion Efficiency: 89%
Output Power: 1W
Features: Short Circuit Protection;Automatic fault recovery;Over-temperature protection
Capacitive Load(Max): 330uF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 2.36 g
