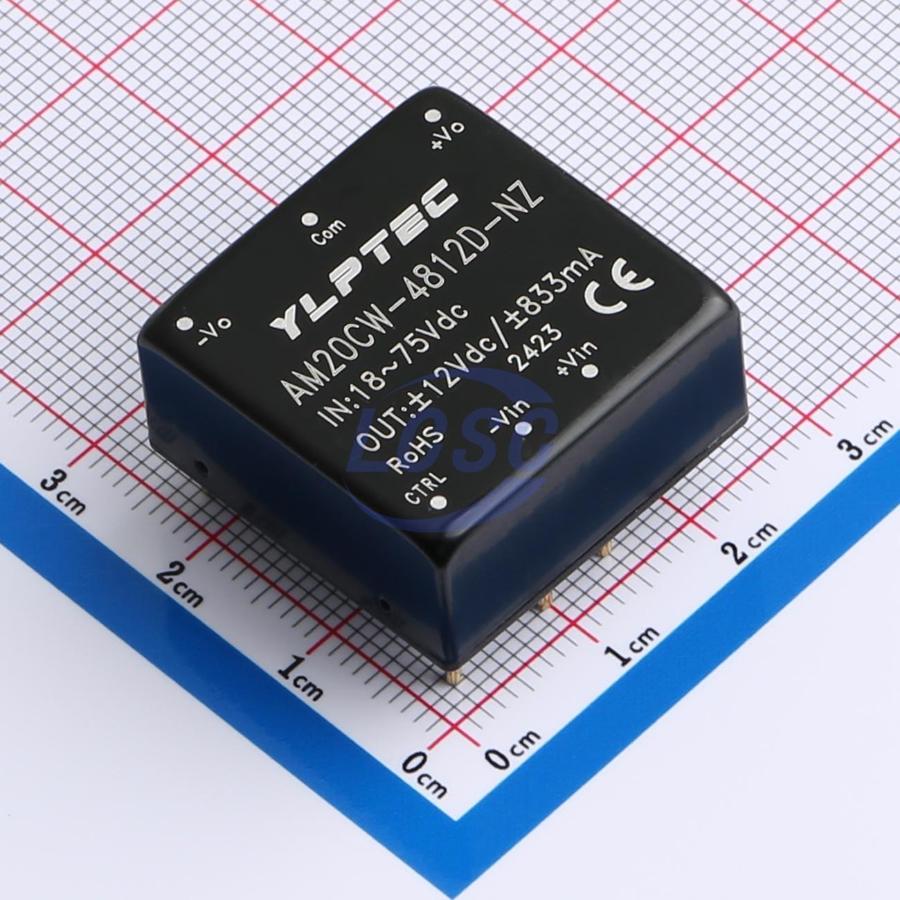

AM20CW-4812D-NZ YLPTEC

AM20CW-4812D-NZ

Isolated Module DC DC Converter Buck 2 Output ±12V ±833mA 18V~75V Input

Through Hole,25.4x25.4mmRoHSActive

DC/DC power module, 20W, ultra-wide voltage input, isolated and regulated single/dual output

Manufacturer: YLPTEC
Manufacturer part #: AM20CW-4812D-NZ
Store part #: C22372482
Package / case: Through Hole,25.4x25.4mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

26 in stock

#C22372482

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹2,219.20	₹2,219.20
10+	₹2,112.08	₹21,120.80
40+	₹1,926.39	₹77,055.60
100+	₹1,764.45	₹1,76,445.00

Quantity (min 1)

1 × ₹2,219.20

₹2,219.20

excl. GST

₹2,618.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 20 per tube

AM20CW-4812D-NZ

₹2,219.20 for 1 + GST

Specifications

Output Voltage: ±12V
Ripple Noise: 50mVp-p
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 1.5mA
Voltage - Supply: 18V~75V
Capacitive Load(Max): 800uF
Number of Outputs: 2
Iout: 833mA
Height: 11.8mm
Frequency - Switching: 250kHz
Isolation Voltage(Vrms): 1.5kV
Conversion Efficiency: 90%
Features: Under Voltage Protection;Short Circuit Protection;Overvoltage protection;Over Current Protection
Output Power: 20W
Length: 25.4mm
Width: 25.4mm

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tube-packed
Standard pack: 20 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 19.47 g
