VBsemi ElecDatasheet (PDF)

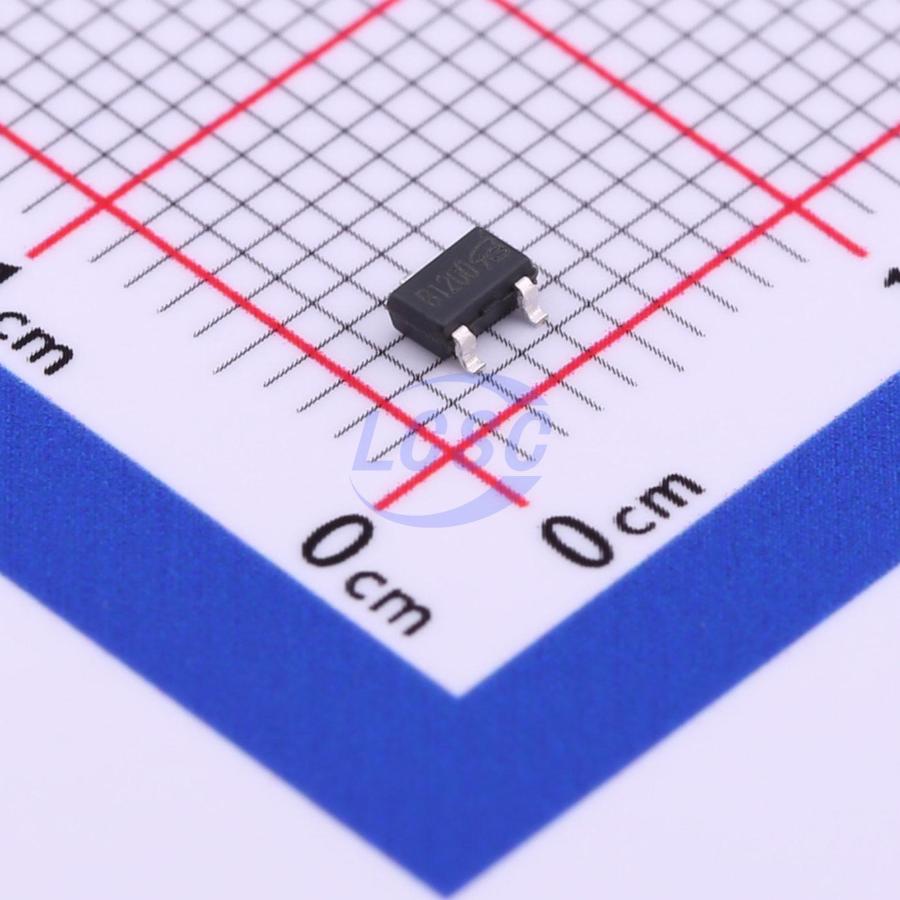

AM2394NE-VB
N-Channel 100V 2A 2.5W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 100V 2A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AM2394NE-VB
- Store part #
- C557935
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C557935
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.96 | ₹79.80 |
| 50+ | ₹15.58 | ₹779.00 |
| 150+ | ₹15.33 | ₹2,299.50 |
| 500+ | ₹15.10 | ₹7,550.00 |
5 × ₹15.96
₹79.80
excl. GST
₹94.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AM2394NE-VB
₹79.80 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 22pF
- Current - Continuous Drain(Id)
- 2A
- Ciss-Input Capacitance
- 190pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 240mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
Applications
- DC/DC Converter - Load Switch - LCD TV LED Backlight
Key features
- Trench power MOSFET
- 100% Rg tested
- 100% UIS tested
- Material category: RoHS compliant, halogen-free
