HXY MOSFETDatasheet (PDF)

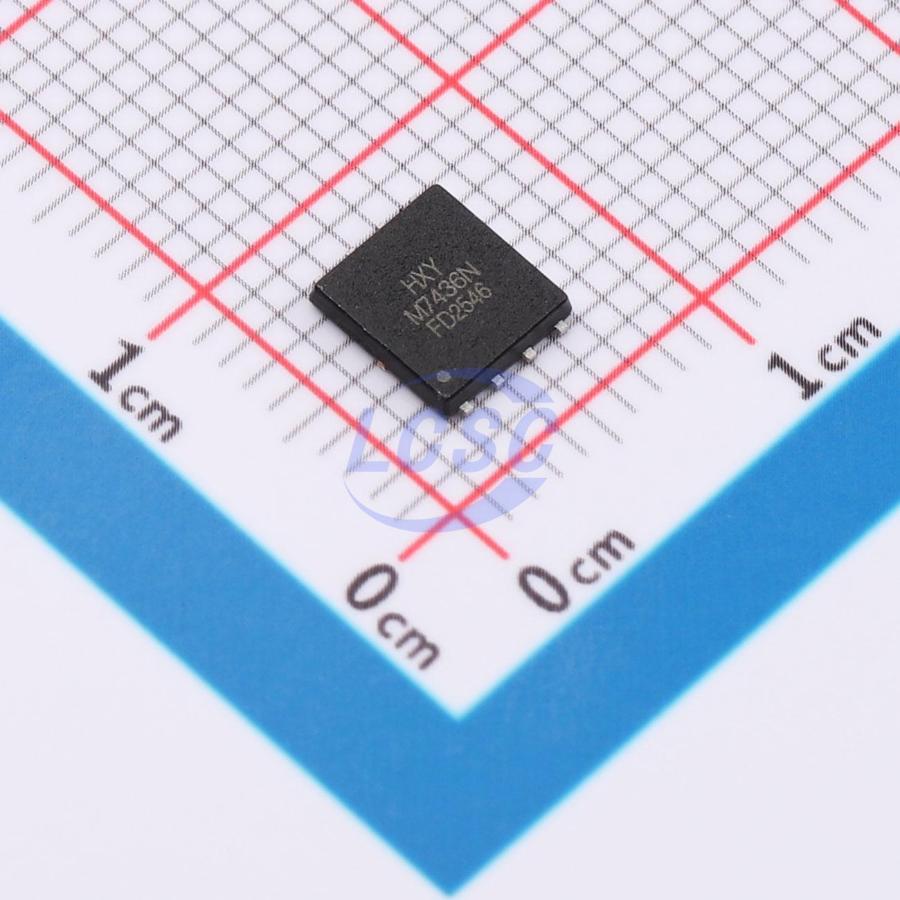

AM7436N-HXY
115W 30V 120A 2.6mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AM7436N-HXY
- Store part #
- C53263143
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C53263143
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.48 | ₹85.48 |
| 10+ | ₹70.03 | ₹700.30 |
| 30+ | ₹62.50 | ₹1,875.00 |
| 100+ | ₹54.77 | ₹5,477.00 |
| 500+ | ₹50.26 | ₹25,130.00 |
| 1,000+ | ₹47.91 | ₹47,910.00 |
1 × ₹85.48
₹85.48
excl. GST
₹100.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AM7436N-HXY
₹85.48 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 480pF
- Ciss-Input Capacitance
- 2.218nF
- Pd - Power Dissipation
- 115W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 120A
- Reverse Transfer Capacitance (Crss)
- 340pF
- RDS(on)
- 2.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24nC@15V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.143 g
