VBsemi ElecDatasheet (PDF)

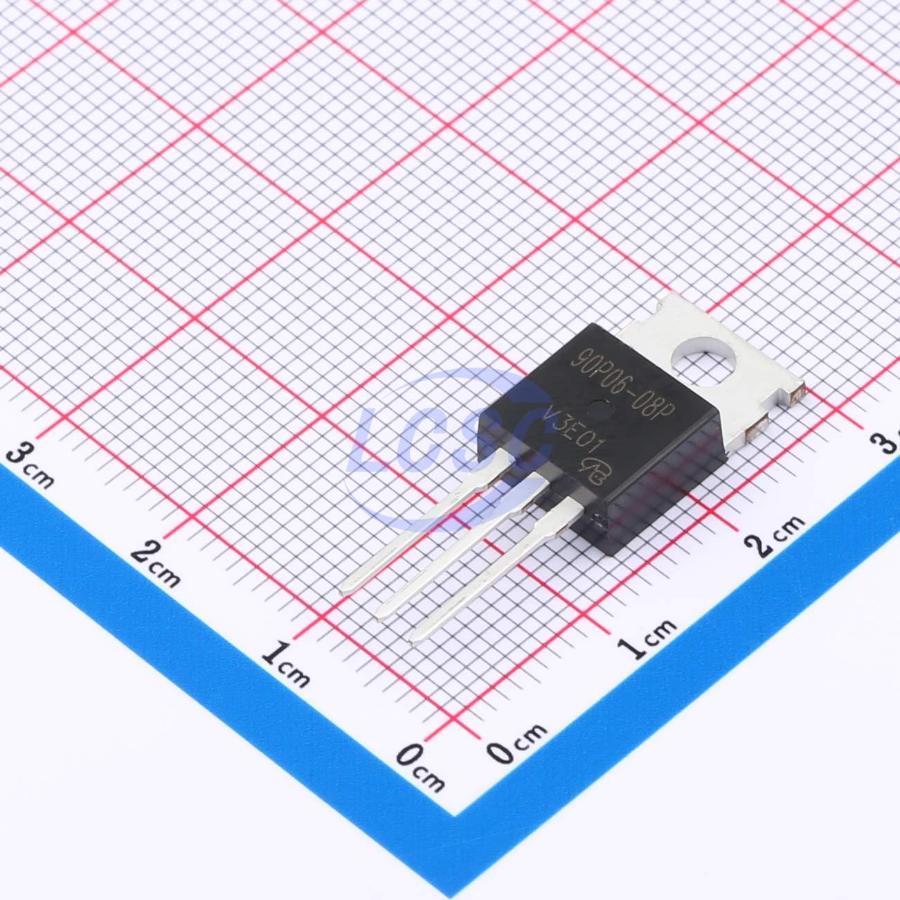

AM90P06-08P-VB
P-Channel 60V 90A 250W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 60V 90A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AM90P06-08P-VB
- Store part #
- C19626796
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C19626796
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹181.07 | ₹181.07 |
| 10+ | ₹151.03 | ₹1,510.30 |
| 50+ | ₹134.65 | ₹6,732.50 |
| 100+ | ₹115.96 | ₹11,596.00 |
| 500+ | ₹107.55 | ₹53,775.00 |
| 1,000+ | ₹103.99 | ₹1,03,990.00 |
1 × ₹181.07
₹181.07
excl. GST
₹213.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AM90P06-08P-VB
₹181.07 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 975pF
- Current - Continuous Drain(Id)
- 90A
- Ciss-Input Capacitance
- 9.2nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 760pF
- RDS(on)
- 7.4mΩ@10V;9.4mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 160nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.15 g
Overview
Applications
- DC-DC primary switch
Key features
- Trench power MOSFET
- RoHS compliant with Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SUP75P05-08-E3-VB#C19632251VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 23 | ₹176.58 · 23 in stock | View |
 | STP80PF55-VB#C20626343VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 7 | ₹216.61 · 7 in stock | View |
 | VBM2609#C42412596VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 8 | ₹209.64 · 8 in stock | View |
 | SUP90P06-09L-E3-VB#C19188119VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 27 | ₹167.20 · 27 in stock | View |
 | SQP90P06-07L_GE3-VB#C49363254VBsemi Elec · TO220 | VBsemi Elec | TO220 | 6 | ₹389.24 · 6 in stock | View |
