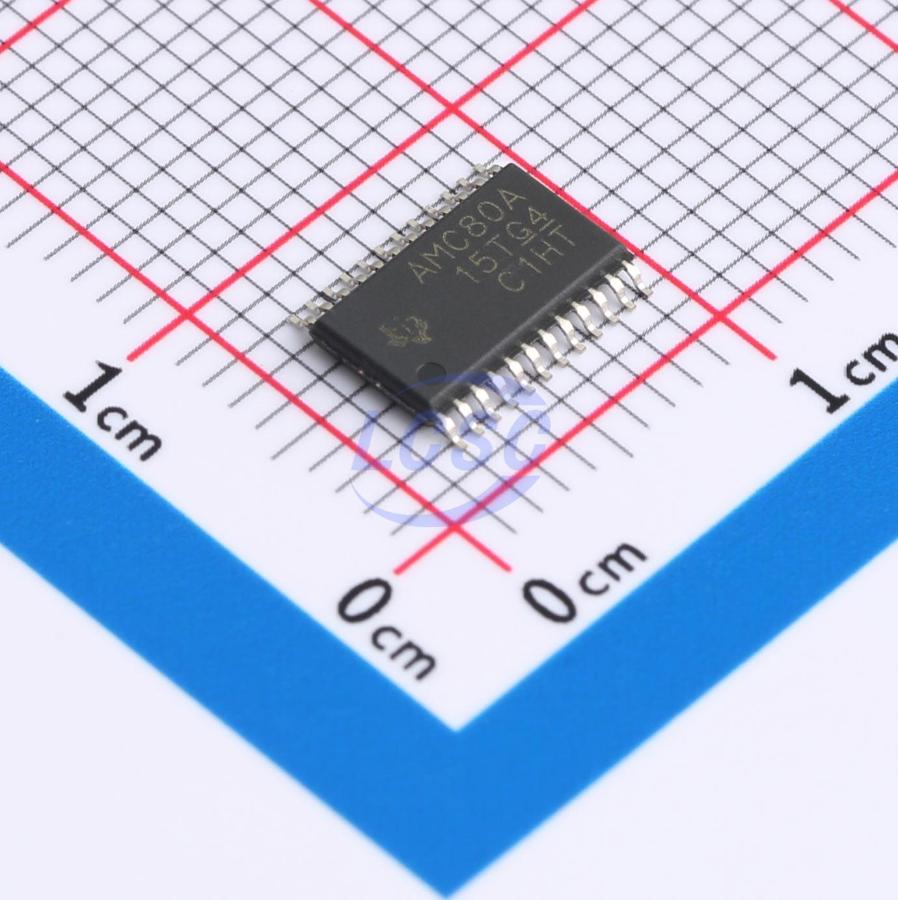

AMC80AIPWR
Temperature Sensor -40℃~+125℃ 12bit TSSOP-24
System hardware monitor with 2-wire and SMBus serial interfaces
- Manufacturer
- TI
- Manufacturer part #
- AMC80AIPWR
- Store part #
- C2861242
- Package / case
- TSSOP-24
- Category
- Thermal Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,493 in stock
#C2861242
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹479.77 | ₹479.77 |
| 10+ | ₹427.70 | ₹4,277.00 |
| 30+ | ₹401.30 | ₹12,039.00 |
| 100+ | ₹365.57 | ₹36,557.00 |
| 500+ | ₹352.83 | ₹1,76,415.00 |
| 1,000+ | ₹347.43 | ₹3,47,430.00 |
1 × ₹479.77
₹479.77
excl. GST
₹566.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
AMC80AIPWR
₹479.77 for 1 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Features
- Temperature threshold monitoring;Low-power standby;Configurable temperature output;Hardware comparator / independent temperature control output
- Resolution (Bits)
- 12bit
- Interface Type
- SMBus
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
The AMC80 is a system hardware monitoring and control circuit featuring a seven-channel 10-bit ADC, two programmable fan speed monitors, and a two-wire interface. The AMC80 also provides programmable upper and lower limit alarm functionality. The alarm is triggered when the programmed limit is exceeded. The AMC80 is compatible with both linear and digital temperature sensors. With a 2.5mV LSB and a 2.56V input range, the device accepts input from linear sensors such as the TMP20. The BT pin serves as the input for digital sensors such as the TMP75. The AMC80 operates from a supply voltage of 3V to 5.5V, and its low supply current combined with two-wire interface configurability make it well-suited for integrated motor driver solutions. The AMC80 is available in a 24-pin TSSOP package and is fully rated for operation over a temperature range of -40°C to +125°C.
Applications
- Communication equipment
- Servers
- Industrial and medical equipment
- Storage area networks
- Set-top boxes
- Test and measurement instruments
Key features
- 10-bit ADC with seven analog inputs
- Fan speed monitoring input
- Input range/resolution:
- Default: 2.56V / 2.5mV
- Programmable: VDD / 6mV
- Chassis intrusion detection input
- Interrupt alarm:
- Upper limit
- Lower limit
- Interrupt status register input for external temperature sensors
- Shutdown mode
- Programmable RST_OUT/OS
- Pin-compatible with LM96080 and LM80
- Package: 24-pin TSSOP
