HXY MOSFETDatasheet (PDF)

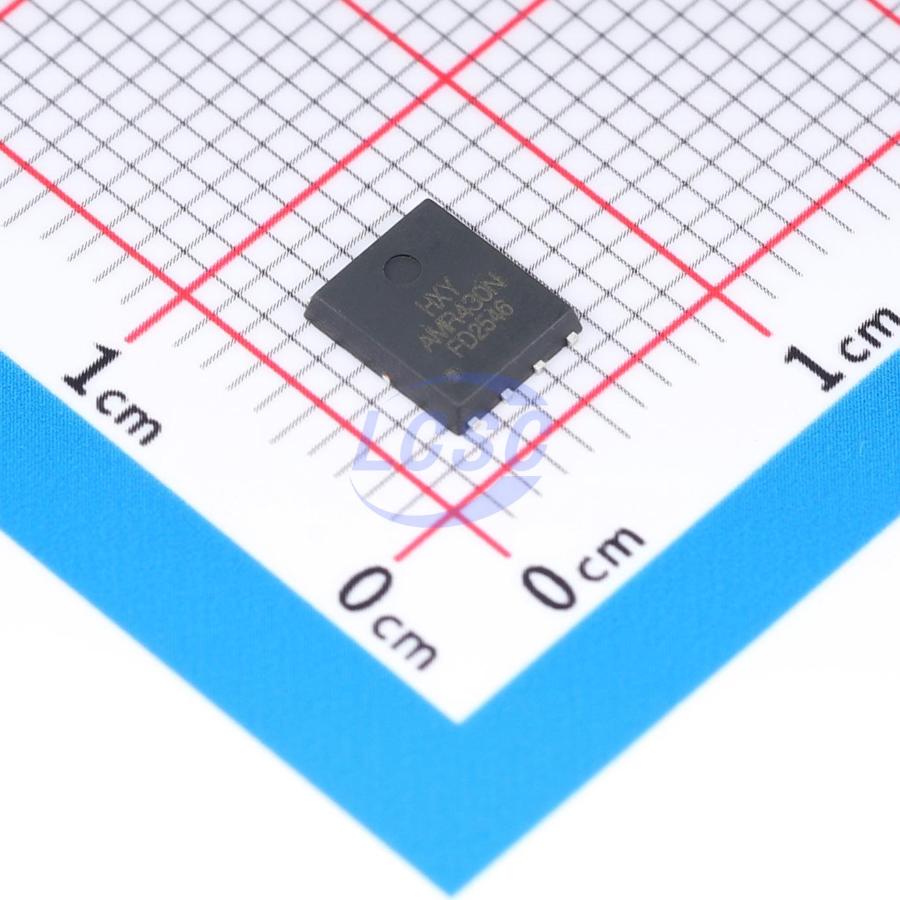

AMR430N-HXY
30W 30V 60A 4.4mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AMR430N-HXY
- Store part #
- C53263394
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
97 in stock
#C53263394
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.93 | ₹68.93 |
| 10+ | ₹56.19 | ₹561.90 |
| 30+ | ₹50.57 | ₹1,517.10 |
| 100+ | ₹43.65 | ₹4,365.00 |
| 500+ | ₹40.63 | ₹20,315.00 |
| 1,000+ | ₹38.90 | ₹38,900.00 |
1 × ₹68.93
₹68.93
excl. GST
₹81.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AMR430N-HXY
₹68.93 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 498pF
- Ciss-Input Capacitance
- 814pF
- Pd - Power Dissipation
- 30W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 4.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AON6576-HXY#C22367000HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 355 | ₹26.67 · 355 in stock | View |
 | SM95N03AD1RL-HXY#C22367003HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 135 | ₹28.78 · 135 in stock | View |
 | BSC050N03LSGATMA1-HXY#C51949307HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 80 | ₹51.66 · 80 in stock | View |
 | CSD17510Q5A-HXY#C53262974HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 97 | ₹98.37 · 97 in stock | View |
 | STL66N3LLH5-HXY#C53263034HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 198 | ₹149.67 · 198 in stock | View |
