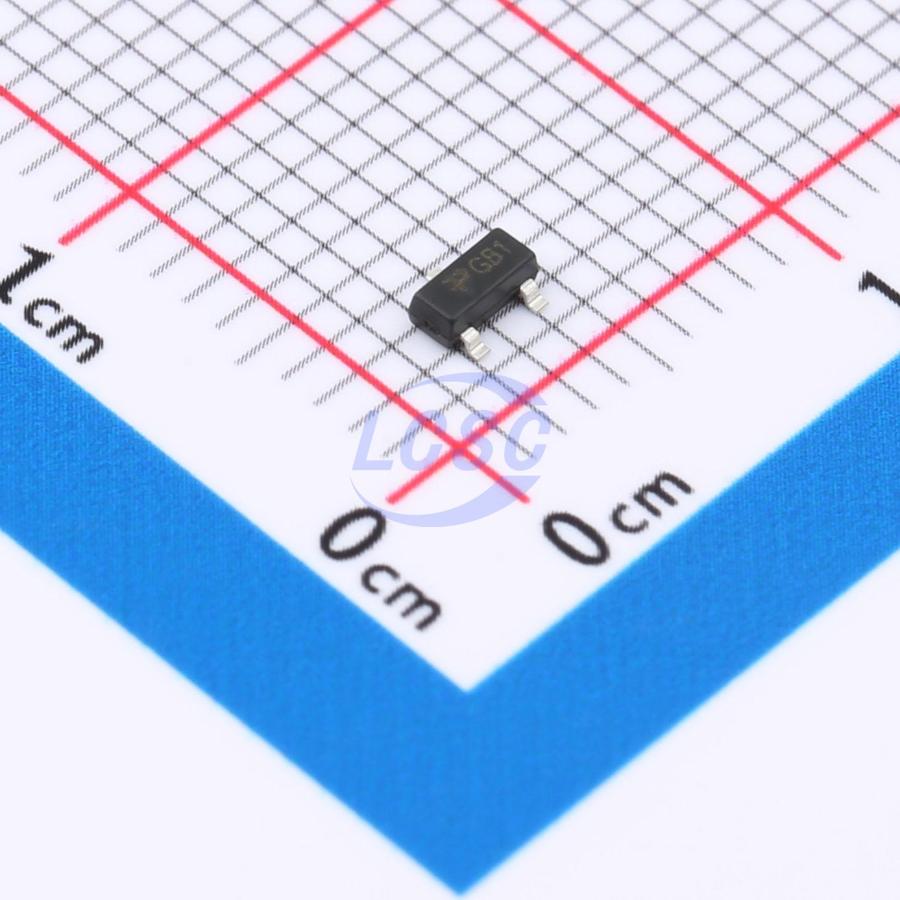

AN431BN-TP
Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 100mA SOT-23
SOT-23RoHSActive
Precision adjustable reference source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AN431BN-TP
- Store part #
- C49190777
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,780 in stock
#C49190777
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.66 | ₹76.60 |
| 100+ | ₹6.01 | ₹601.00 |
| 300+ | ₹5.17 | ₹1,551.00 |
| 3,000+ | ₹4.55 | ₹13,650.00 |
| 6,000+ | ₹4.06 | ₹24,360.00 |
| 9,000+ | ₹3.81 | ₹34,290.00 |
10 × ₹7.66
₹76.60
excl. GST
₹90.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AN431BN-TP
₹76.60 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 350uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
This device is a three-terminal adjustable shunt voltage regulator that allows the output voltage to be set to any value between Vref (approximately 2.5V) and 36V using two external resistors. These devices feature a typical output impedance of 0.15 Ω. The active output circuitry provides a very sharp turn-on characteristic, making it an excellent replacement for Zener diodes in many applications. These applications include on-board voltage regulation, adjustable power supplies, and power switching.
Applications
- Adjustable voltage and current reference
- Zener diode replacement
- Voltage monitoring
- Comparator with integrated reference
- Secondary-side voltage regulation in flyback switching power supplies
Key features
- Adjustable output voltage range: 2.5V~36V
- Low dynamic output resistance: 0.15 Ω (typical)
- Low temperature drift: 5 mV (typical)
- Low output noise
- High stability with capacitive loads
- Current capacity range: 1~100 mA
- Accuracy: 1%
- Package: SOT23
