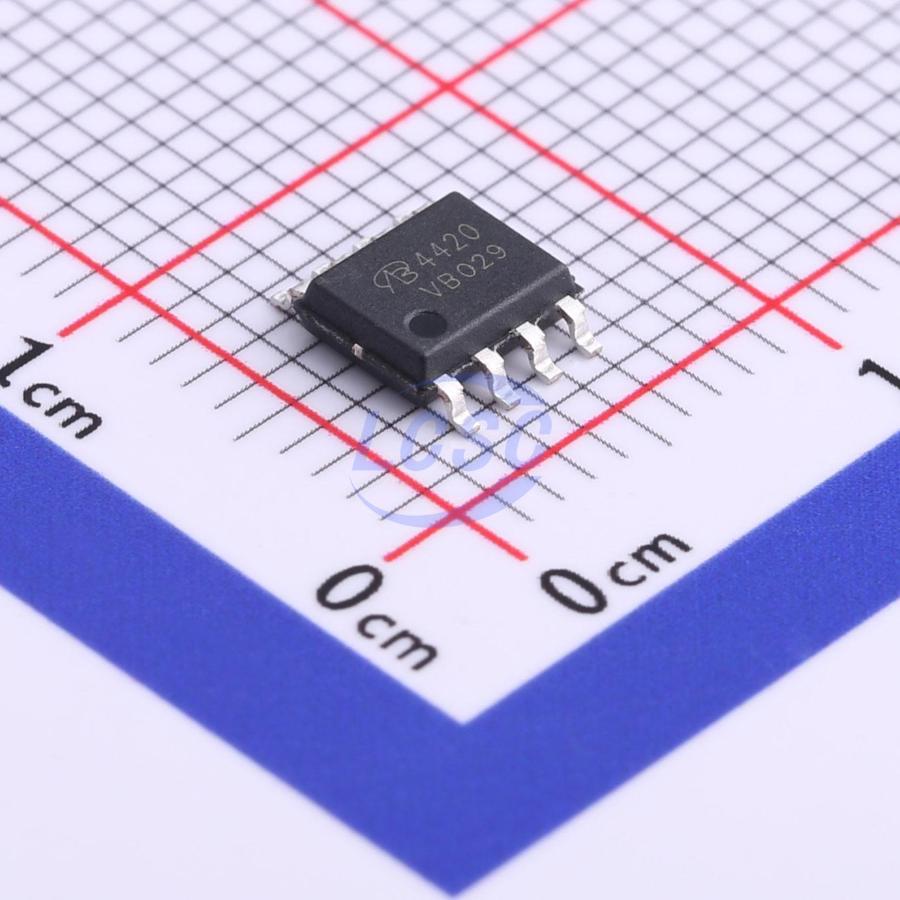

AO4420-VB
N-Channel 30V 13A 2.2W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 30V 13A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AO4420-VB
- Store part #
- C724960
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C724960
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹60.42 | ₹302.10 |
| 50+ | ₹50.64 | ₹2,532.00 |
| 150+ | ₹46.46 | ₹6,969.00 |
| 500+ | ₹41.24 | ₹20,620.00 |
| 2,500+ | ₹25.63 | ₹64,075.00 |
| 4,000+ | ₹24.22 | ₹96,880.00 |
5 × ₹60.42
₹302.10
excl. GST
₹356.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AO4420-VB
₹302.10 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 165pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 2.2W
- Reverse Transfer Capacitance (Crss)
- 73pF
- RDS(on)
- 8mΩ@10V;11mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.137 g
Overview
Applications
- Notebook CPU core - High-end switching
Key features
- Halogen-free
- Trench power MOSFET
- Optimized for high-side synchronous rectifier operation
- 100% Rg tested
- 100% single-pulse avalanche energy tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF7463TRPBF-VB#C5456508VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 90 | ₹58.57 · 90 in stock | View |
 | PHK12NQ03LT-VB#C5456585VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 100 | ₹44.98 · 100 in stock | View |
 | FDS6612A-VB#C878932VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 2 | ₹51.25 · 2 in stock | View |
 | FDS6670AS-NL-VB#C5456498VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 45 | ₹44.98 · 45 in stock | View |
 | NDS9410A-NL-VB#C5878830VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹47.24 · 20 in stock | View |
