VBsemi ElecDatasheet (PDF)

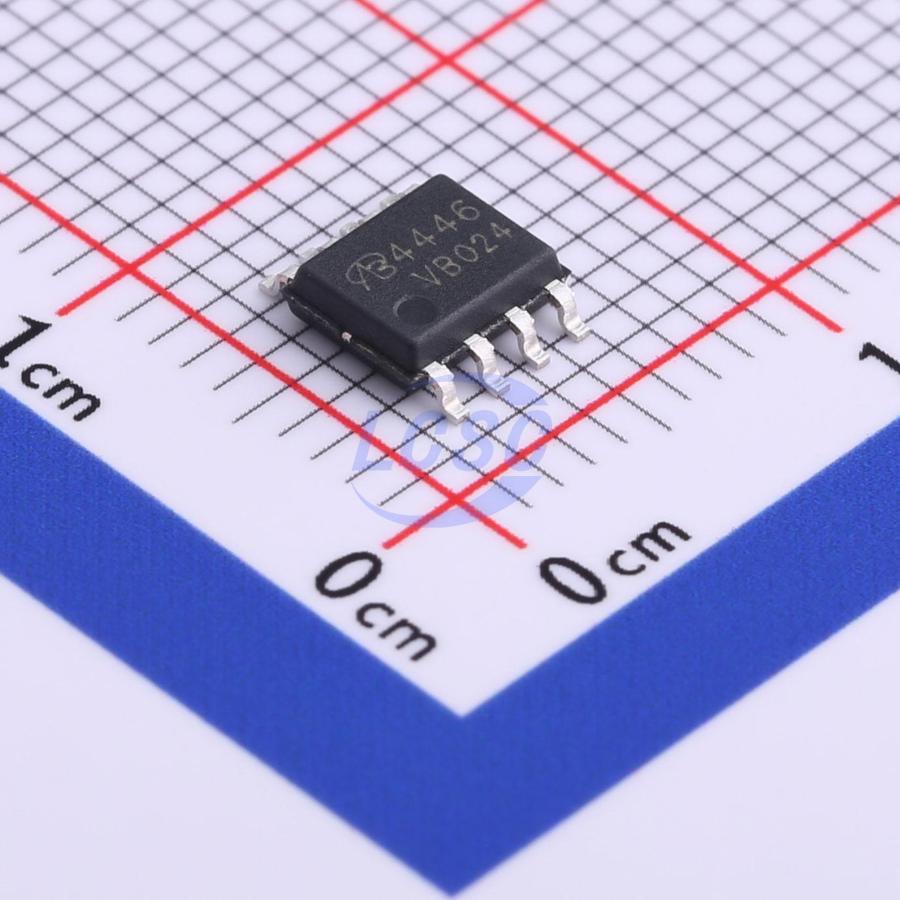

AO4446-VB
N-Channel 30V 9A 2.2W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 30V 9A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AO4446-VB
- Store part #
- C878867
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C878867
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹58.09 | ₹290.45 |
| 50+ | ₹48.33 | ₹2,416.50 |
| 150+ | ₹44.14 | ₹6,621.00 |
| 500+ | ₹38.92 | ₹19,460.00 |
| 2,500+ | ₹25.63 | ₹64,075.00 |
| 4,000+ | ₹24.22 | ₹96,880.00 |
5 × ₹58.09
₹290.45
excl. GST
₹342.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AO4446-VB
₹290.45 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 165pF
- Current - Continuous Drain(Id)
- 9A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 2.2W
- Reverse Transfer Capacitance (Crss)
- 73pF
- RDS(on)
- 8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.137 g
Overview
Applications
- Laptop CPU core
- High-end switching
Key features
- Halogen-free
- Trench power MOSFET
- Optimized for high-side synchronous rectifier operation
- 100% Rg tested
- 100% UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | APM4820KC-TRL-VB#C5240571VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹46.11 · 50 in stock | View |
 | IRF7413TRPBF-VB#C558151VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 925 | ₹46.00 · 925 in stock | View |
 | PV600BA-VB#C558229VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 85 | ₹46.25 · 85 in stock | View |
 | STN4392S8RG-VB#C2680809VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹44.98 · 50 in stock | View |
 | TPC8010-H-VB#C2680823VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹44.98 · 50 in stock | View |
