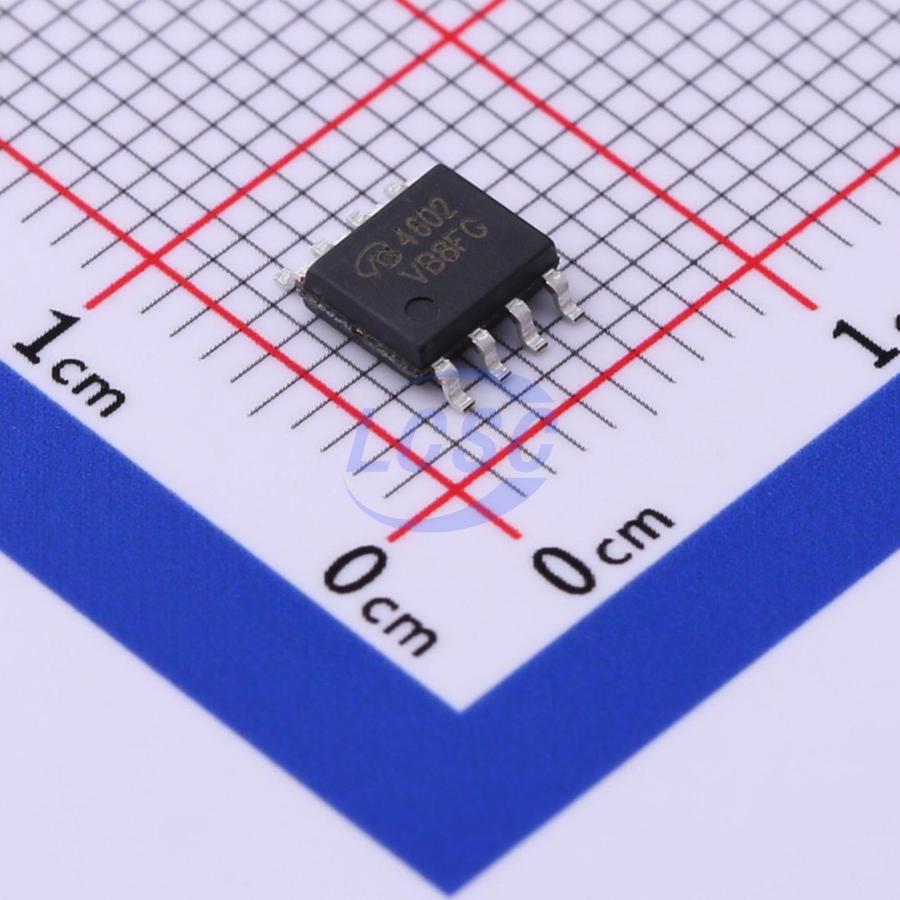

AO4602-VB
N-Channel+P-Channel Array 30V 8A 3.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 30V 8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AO4602-VB
- Store part #
- C709890
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C709890
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.93 | ₹52.93 |
| 10+ | ₹42.02 | ₹420.20 |
| 30+ | ₹37.40 | ₹1,122.00 |
| 100+ | ₹31.51 | ₹3,151.00 |
| 500+ | ₹27.52 | ₹13,760.00 |
| 1,000+ | ₹25.84 | ₹25,840.00 |
1 × ₹52.93
₹52.93
excl. GST
₹62.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AO4602-VB
₹52.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 95pF;115pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 510pF;620pF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 33pF;57pF
- RDS(on)
- 18mΩ@10V;40mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 6.2nC@10V;18.5nC@10V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.138 g
Overview
Applications
- Motor Drive - Power Bank
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rq and UIS tested
- Compliant with RoHS Directive 2002/95/EC
