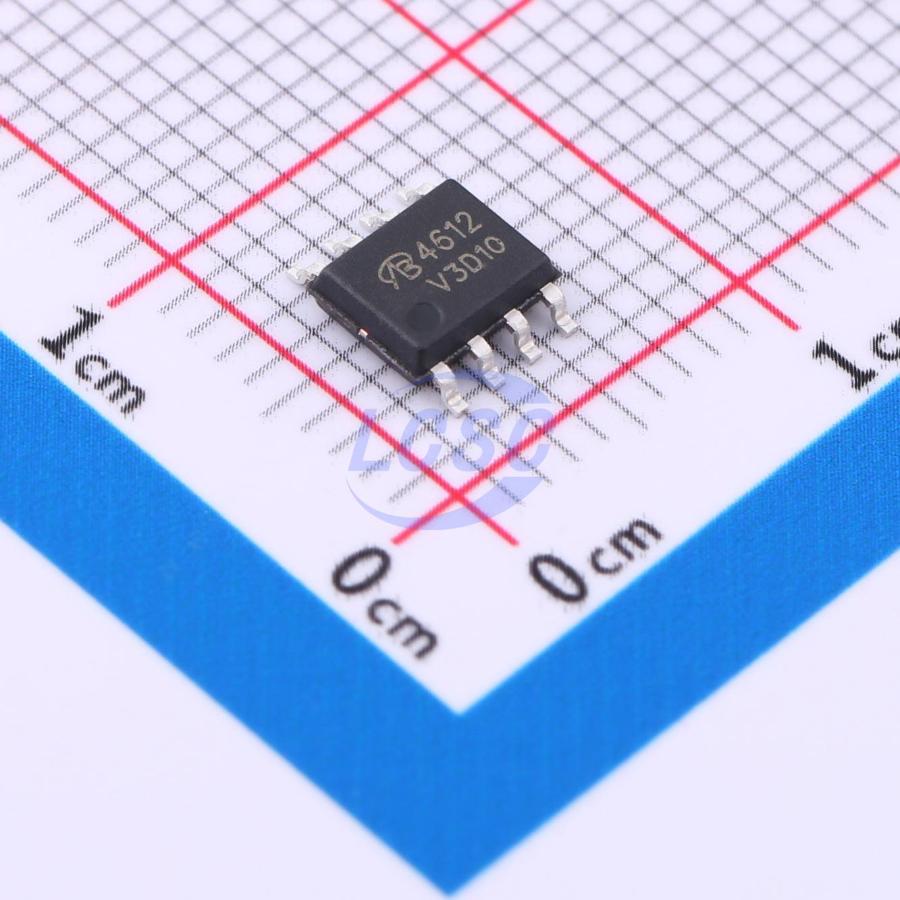

AO4612-VB
N-Channel+P-Channel 60V 5.3A 3.4W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 60V 5.3A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AO4612-VB
- Store part #
- C7428939
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
56 in stock
#C7428939
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.70 | ₹89.70 |
| 10+ | ₹73.73 | ₹737.30 |
| 30+ | ₹65.54 | ₹1,966.20 |
| 100+ | ₹57.56 | ₹5,756.00 |
| 500+ | ₹47.89 | ₹23,945.00 |
| 1,000+ | ₹45.38 | ₹45,380.00 |
1 × ₹89.70
₹89.70
excl. GST
₹105.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AO4612-VB
₹89.70 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 75pF;95pF
- Current - Continuous Drain(Id)
- 5.3A
- Ciss-Input Capacitance
- 665pF;650pF
- Pd - Power Dissipation
- 3.4W
- Reverse Transfer Capacitance (Crss)
- 40pF;60pF
- RDS(on)
- 26mΩ@10V;29mΩ@4.5V;55mΩ@10V;60mΩ@4.5V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 6nC@10V;8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V;3V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.136 g
Overview
The WsF90N10 is a high-performance trench N-channel MOSFET with ultra-high cell density, delivering excellent on-resistance (R<sub>DS(ON)</sub>) and gate charge for most synchronous buck converter applications. The WsF90N10 is RoHS-compliant and meets green product requirements, 100% tested for avalanche energy capability (EAS), and has passed comprehensive functional reliability qualification.
Applications
- Cold cathode fluorescent lamp (CCFL) inverter
- N-channel MOSFET
- P-channel MOSFET
Key features
- Halogen-free option available, compliant with IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free option available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI4559EY-T1-E3-VB#C5441246VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 54 | ₹86.92 · 54 in stock | View |
 | SP8M24-TB-VB#C18795036VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 5 | ₹110.38 · 5 in stock | View |
 | STM8455-VB#C2680905VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹84.66 · 50 in stock | View |
 | AO4611-VB#C557956VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹91.13 · 15 in stock | View |
 | ZXMC4559DN8TA-VB#C879006VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 174 | ₹97.36 · 174 in stock | View |
