VBsemi ElecDatasheet (PDF)

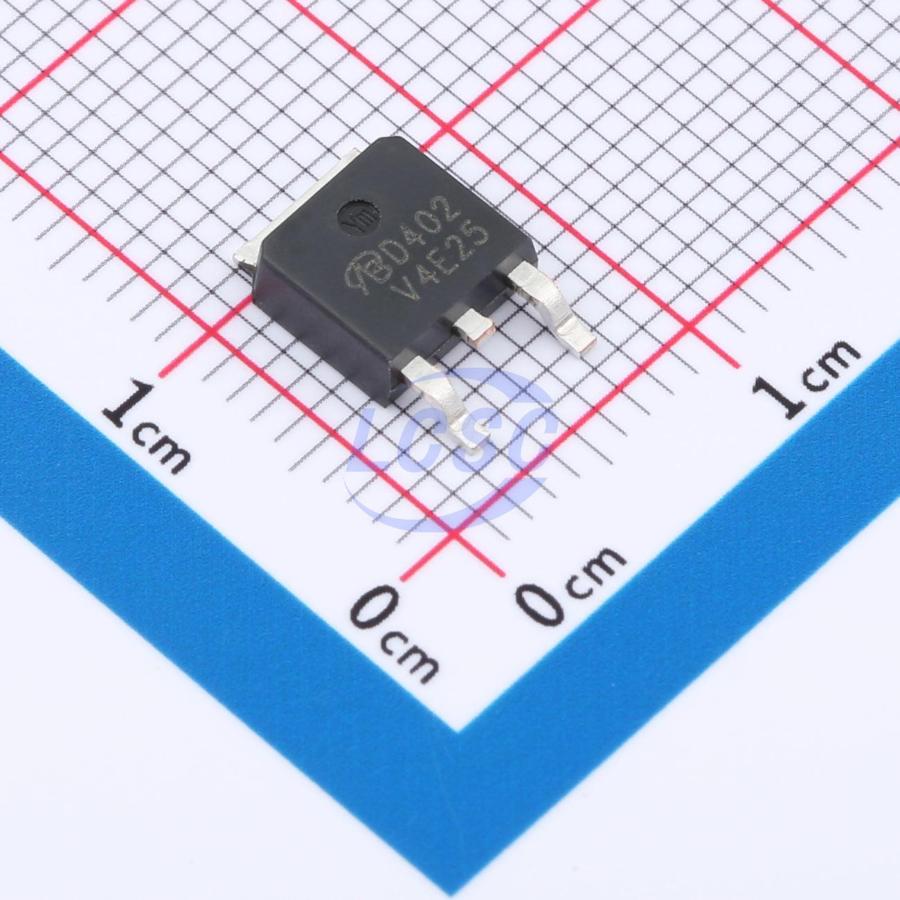

AOD402-VB
N-Channel 30V 70A 100W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 70A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOD402-VB
- Store part #
- C22389554
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C22389554
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.70 | ₹57.70 |
| 10+ | ₹46.60 | ₹466.00 |
| 30+ | ₹41.58 | ₹1,247.40 |
| 100+ | ₹35.71 | ₹3,571.00 |
| 500+ | ₹29.83 | ₹14,915.00 |
| 1,000+ | ₹28.09 | ₹28,090.00 |
1 × ₹57.70
₹57.70
excl. GST
₹68.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOD402-VB
₹57.70 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.45 g
Overview
Applications
- OR Gate Applications - Server - DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
