HXY MOSFETDatasheet (PDF)

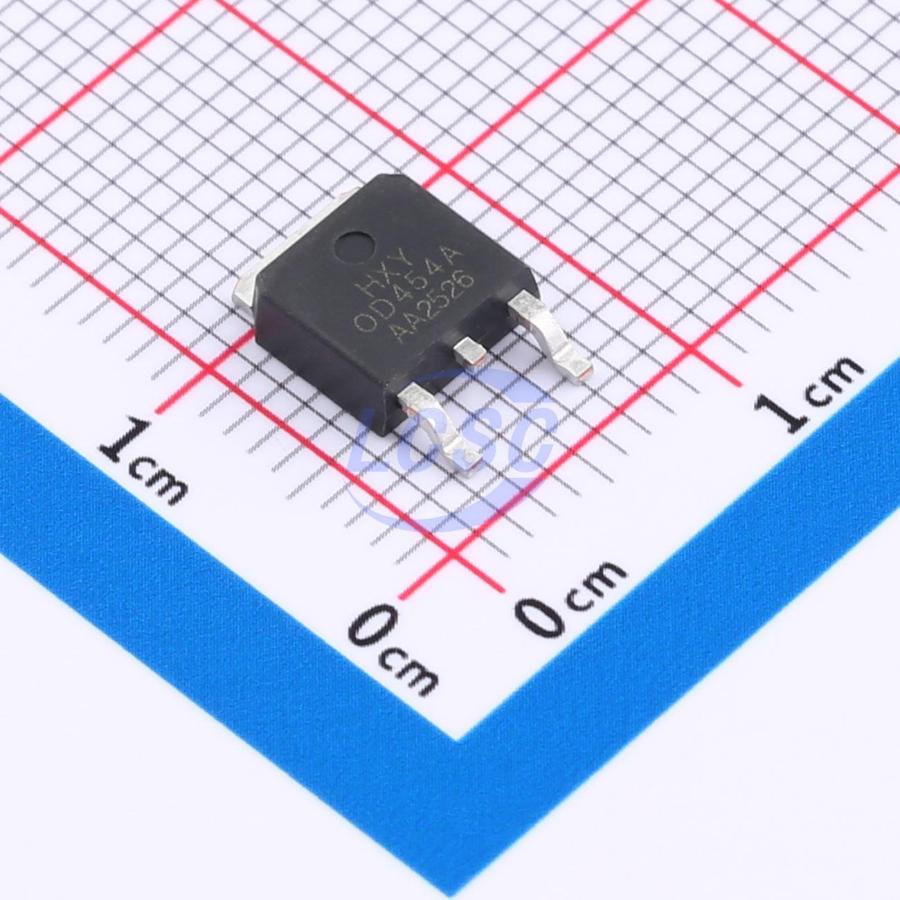

AOD454A
40V 25A 26W 18mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
MOSFET N-CH 40V 25A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AOD454A
- Store part #
- C49420428
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C49420428
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.42 | ₹55.42 |
| 10+ | ₹43.25 | ₹432.50 |
| 30+ | ₹38.04 | ₹1,141.20 |
| 100+ | ₹31.73 | ₹3,173.00 |
| 500+ | ₹28.91 | ₹14,455.00 |
| 1,000+ | ₹27.17 | ₹27,170.00 |
1 × ₹55.42
₹55.42
excl. GST
₹65.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOD454A
₹55.42 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -50℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 25A
- Output Capacitance(Coss)
- 70pF
- Ciss-Input Capacitance
- 825pF
- Pd - Power Dissipation
- 26W
- Reverse Transfer Capacitance (Crss)
- 39pF
- RDS(on)
- 18mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.365 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD8451-HXY#C22366945HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 5 | ₹35.44 · 5 in stock | View |
 | IPD160N04LG-HXY#C48996535HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 365 | ₹17.19 · 365 in stock | View |
 | SQD40N10-25-T4_GE3-HXY#C49420407HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 171 | ₹62.08 · 171 in stock | View |
 | AOD4126#C54582552HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 47 | ₹91.14 · 47 in stock | View |
 | FDD86102-HXY#C54582561HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹70.29 · 48 in stock | View |
