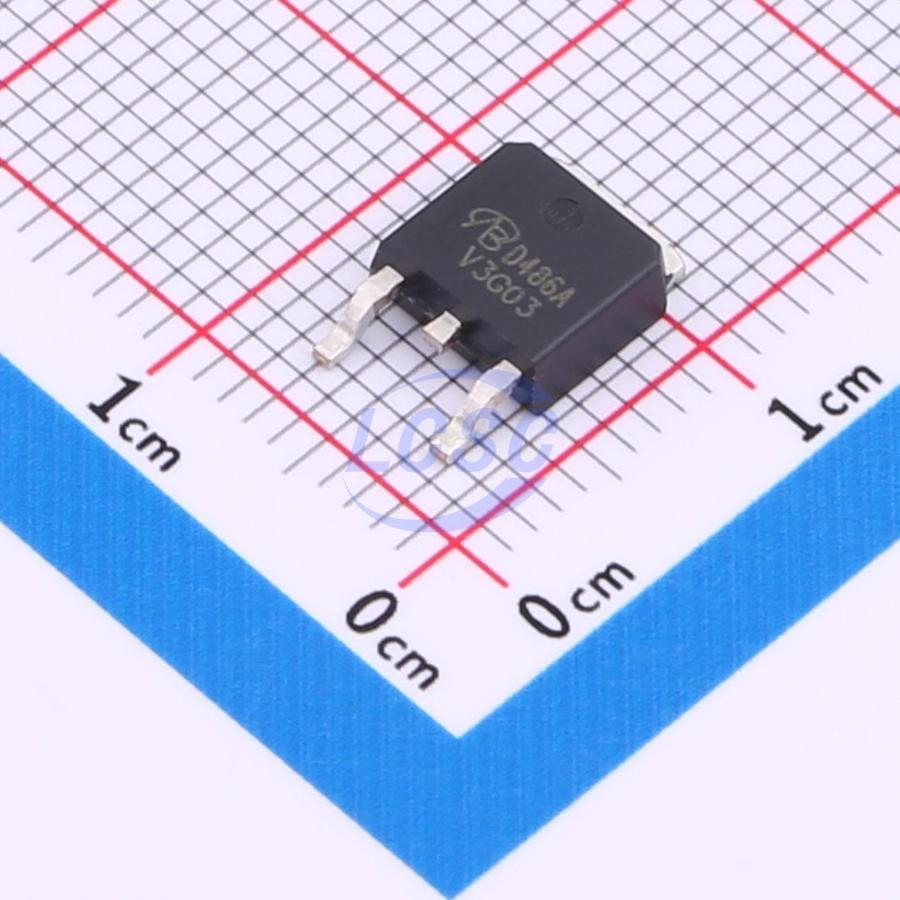

AOD486A-VB
N-Channel 40V 85A 312W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 40V 85A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOD486A-VB
- Store part #
- C18212505
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C18212505
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.74 | ₹92.74 |
| 10+ | ₹76.20 | ₹762.00 |
| 30+ | ₹67.92 | ₹2,037.60 |
| 100+ | ₹59.65 | ₹5,965.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹92.74
₹92.74
excl. GST
₹109.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOD486A-VB
₹92.74 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 550pF
- Current - Continuous Drain(Id)
- 85A
- Ciss-Input Capacitance
- 2.38nF
- Pd - Power Dissipation
- 312W
- Reverse Transfer Capacitance (Crss)
- 250pF
- RDS(on)
- 5mΩ@10V;6.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.2V;2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.368 g
Overview
Applications
- Synchronous Rectification - Power Supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
