VBsemi ElecDatasheet (PDF)

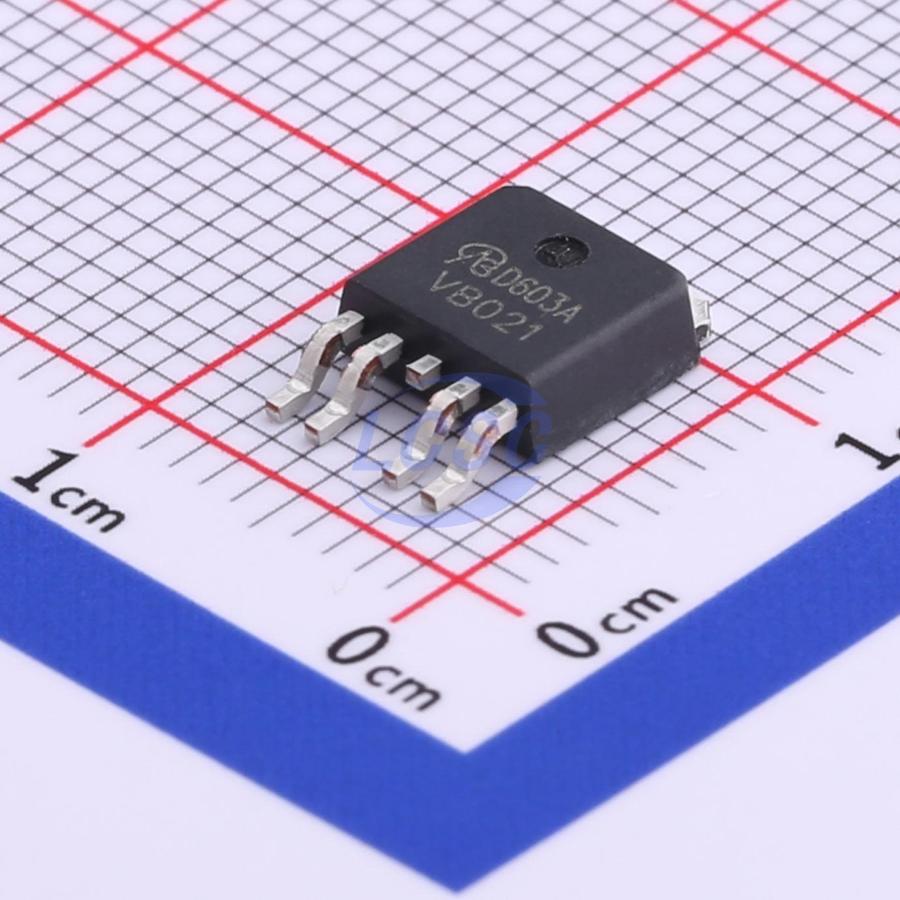

AOD603A-VB
N-Channel+P-Channel Array 60V 35A Surface Mount TO-252-4L
TO-252-4LRoHSActive
MOSFET N-CH+P-CH ARR 60V 35A TO-252-4L
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOD603A-VB
- Store part #
- C878963
- Package / case
- TO-252-4L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C878963
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.47 | ₹148.47 |
| 10+ | ₹124.96 | ₹1,249.60 |
| 30+ | ₹113.21 | ₹3,396.30 |
| 100+ | ₹101.67 | ₹10,167.00 |
| 500+ | ₹71.84 | ₹35,920.00 |
| 1,000+ | ₹68.15 | ₹68,150.00 |
1 × ₹148.47
₹148.47
excl. GST
₹175.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOD603A-VB
₹148.47 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 84pF
- Current - Continuous Drain(Id)
- 35A
- Ciss-Input Capacitance
- 1.5nF;1.18nF
- Pd - Power Dissipation
- 50W
- Reverse Transfer Capacitance (Crss)
- 79pF;60pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 9nC@4.5V;10nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V;3V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.393 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
- N-channel
- P-channel
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP4578GH-HF-VB#C19626714VBsemi Elec · TO-252-4L | VBsemi Elec | TO-252-4L | 144 | ₹92.64 · 144 in stock | View |
 | AP4513GH-A-VB#C29779379VBsemi Elec · TO-252-4L | VBsemi Elec | TO-252-4L | 20 | ₹89.06 · 20 in stock | View |
 | AP4511GH-A-VB#C20417718VBsemi Elec · TO-252-4L | VBsemi Elec | TO-252-4L | 35 | ₹92.64 · 35 in stock | View |
 | AP4506GEH-VB#C22389640VBsemi Elec · TO-252-4L | VBsemi Elec | TO-252-4L | 8 | ₹89.06 · 8 in stock | View |
 | AOD607-VB#C22389843VBsemi Elec · TO-252-4L | VBsemi Elec | TO-252-4L | 20 | ₹89.06 · 20 in stock | View |
