TECH PUBLIC

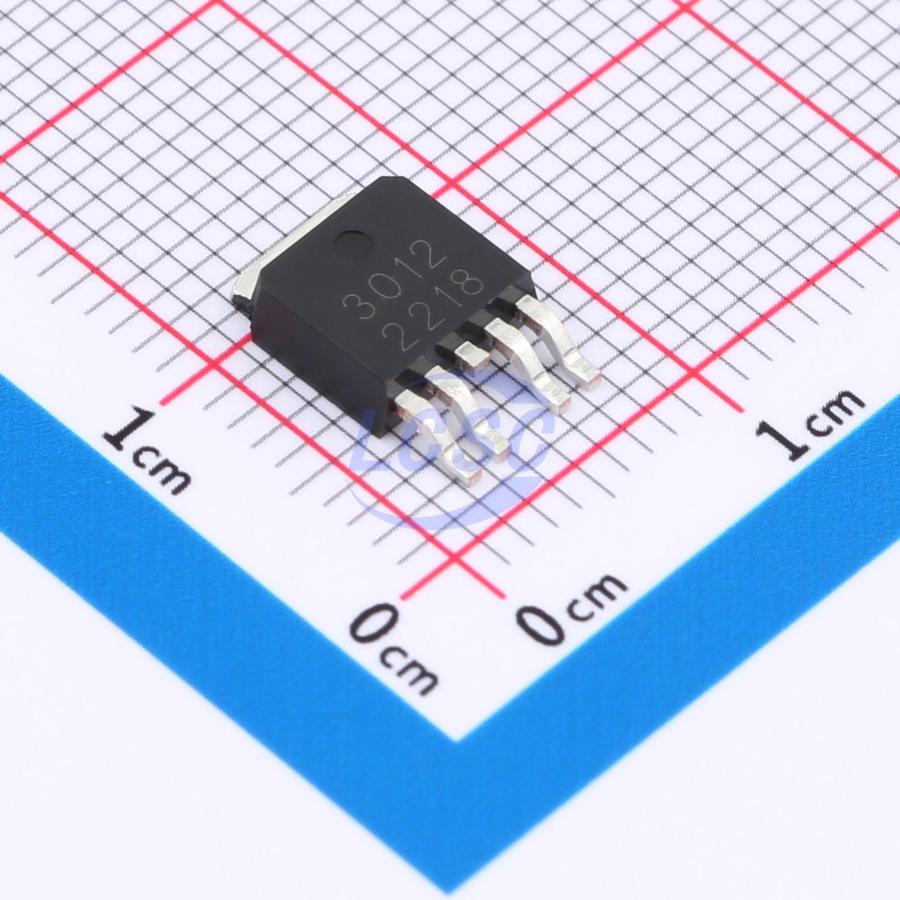

AOD607

N-Channel+P-Channel Array 30V 22.1A 20W Surface Mount TO-252-4L

TO-252-4LRoHSActive

MOSFET N-CH+P-CH ARR 30V 22.1A TO-252-4L

Manufacturer: TECH PUBLIC
Manufacturer part #: AOD607
Store part #: C19829463
Package / case: TO-252-4L
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,285 in stock

#C19829463

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹16.10	₹80.50
50+	₹14.00	₹700.00
150+	₹13.11	₹1,966.50
500+	₹11.99	₹5,995.00
2,500+	₹11.48	₹28,700.00
5,000+	₹11.18	₹55,900.00

Quantity (min 5, multiples of 5)

5 × ₹16.10

₹80.50

excl. GST

₹94.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

AOD607

₹80.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Drain to Source Voltage: 30V
Operating Temperature: -55℃~+150℃
Current - Continuous Drain(Id): 22.1A
Ciss-Input Capacitance: 530pF
Pd - Power Dissipation: 20W
Reverse Transfer Capacitance (Crss): 56pF
RDS(on): 75mΩ@4.5V
Number: 1 N-Channel + 1 P-Channel
Gate Charge(Qg): 6.8nC@10V
Gate Threshold Voltage (Vgs(th)): 2.5V
Type: N-Channel + P-Channel

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.478 g

Overview

Applications

Motor/Body Load Control
Load Switch
PWM Application
DC-DC converters and Off-line UPS

Key features

RDS(ON) 15mQ@VGs=10V (N-Ch)
RDS(ON)≤36mQ@VGS θ, -4.5V(P-Ch)

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	TPM30NP12K4#C19829458TECH PUBLIC · TO-252-4L	TECH PUBLIC	TO-252-4L	200	₹15.48 · 200 in stock	View
