HXY MOSFETDatasheet (PDF)

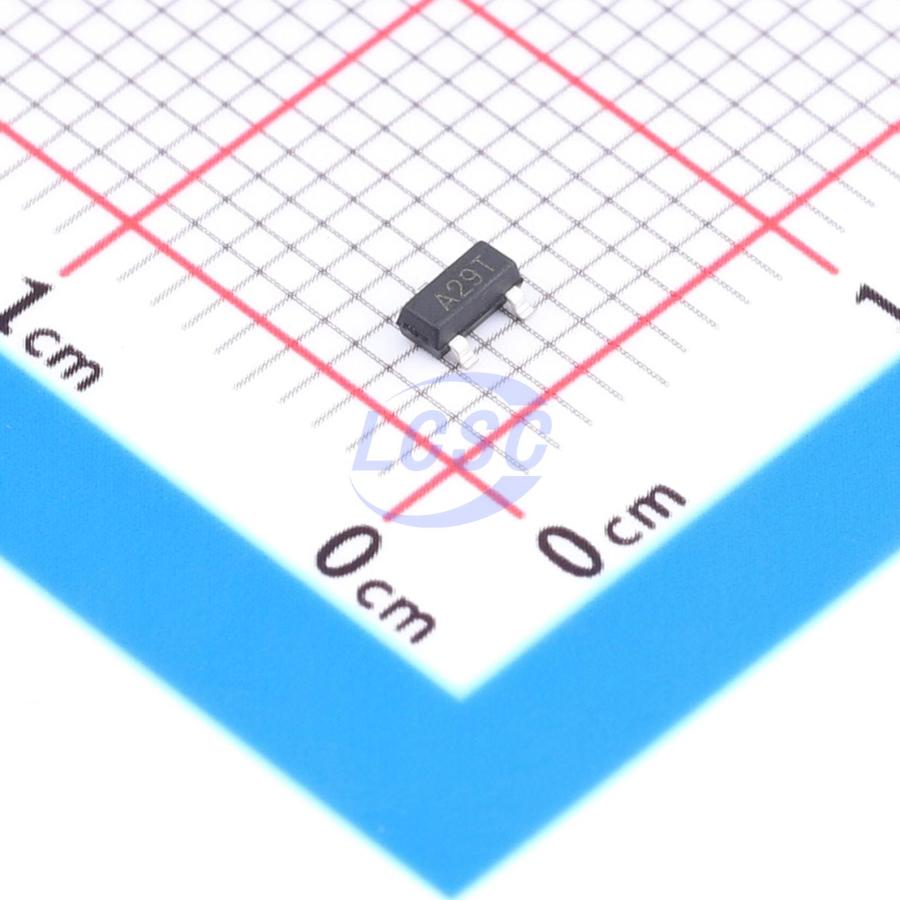

AOSS32338C
30V 5A 1W 33mΩ@10V 1 N-channel N-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AOSS32338C
- Store part #
- C54582834
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C54582834
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.22 | ₹61.10 |
| 50+ | ₹9.86 | ₹493.00 |
| 150+ | ₹8.67 | ₹1,300.50 |
| 500+ | ₹7.77 | ₹3,885.00 |
| 3,000+ | ₹6.31 | ₹18,930.00 |
| 6,000+ | ₹5.95 | ₹35,700.00 |
5 × ₹12.22
₹61.10
excl. GST
₹72.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AOSS32338C
₹61.10 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5A
- Output Capacitance(Coss)
- 49pF
- Pd - Power Dissipation
- 1W
- RDS(on)
- 33mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.6nC@4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The AOSS32338C utilizes advanced trench technology to deliver excellent on-resistance, low gate charge, and the ability to operate at gate voltages as low as 2.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = 30V, ID = 5A
- RDS(ON) < 42mΩ (at VGS = 10V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLML6346TRPBF-HXY#C20606232HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 110 | ₹9.23 · 110 in stock | View |
 | PMV40UN2R-HXY#C22366517HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 40 | ₹7.54 · 40 in stock | View |
 | DMG3402L-HXY#C22366518HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 30 | ₹6.30 · 30 in stock | View |
 | IRLML6346PBF-HXY#C22366520HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 10 | ₹12.08 · 10 in stock | View |
 | SI2336DS-T1-GE3-HXY#C49420477HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 165 | ₹10.93 · 165 in stock | View |
