VBsemi ElecDatasheet (PDF)

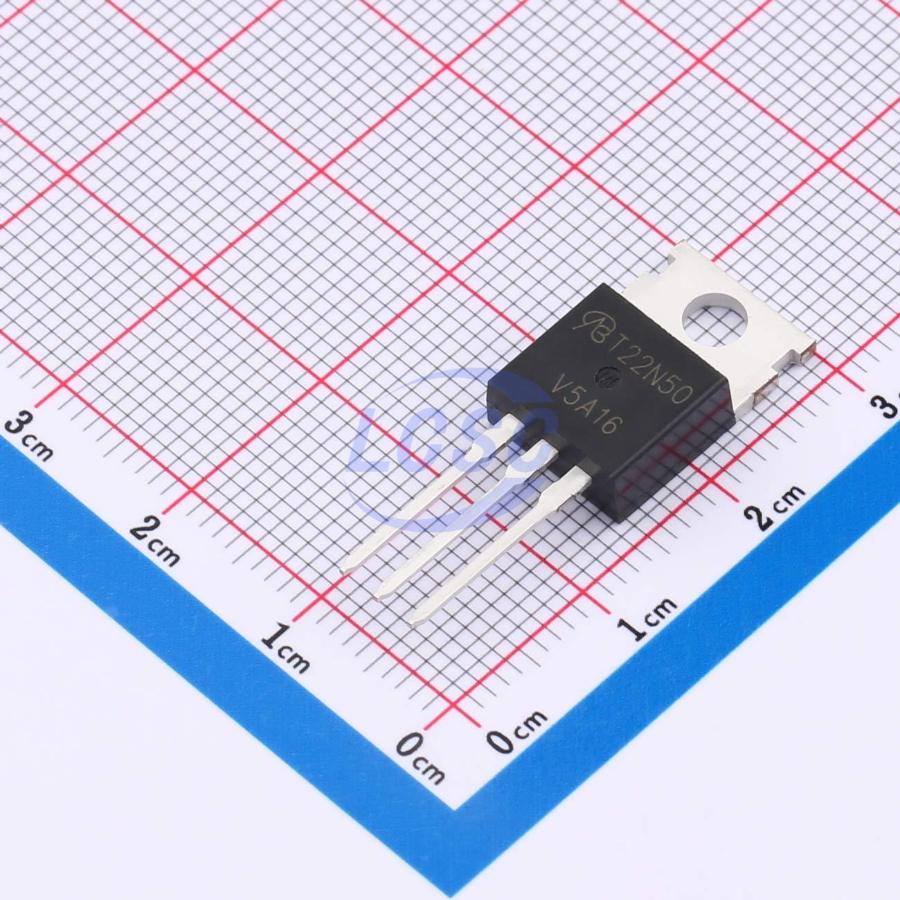

AOT22N50L-VB
N-Channel 550V 278W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 550V TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOT22N50L-VB
- Store part #
- C45350880
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C45350880
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹416.89 | ₹416.89 |
| 10+ | ₹361.38 | ₹3,613.80 |
| 50+ | ₹289.54 | ₹14,477.00 |
| 100+ | ₹253.83 | ₹25,383.00 |
| 500+ | ₹237.94 | ₹1,18,970.00 |
| 1,000+ | ₹230.76 | ₹2,30,760.00 |
1 × ₹416.89
₹416.89
excl. GST
₹491.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AOT22N50L-VB
₹416.89 for 1 + GST
Specifications
- Drain to Source Voltage
- 550V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 20A
- Output Capacitance(Coss)
- 152pF
- Ciss-Input Capacitance
- 3.094nF
- Pd - Power Dissipation
- 278W
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 200mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 170nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.5 g
Overview
Applications
- Consumer Electronics
- Displays (LCD or Plasma TVs)
- Server and Telecom Power - Switching Power Supplies (SMPS)
- Industrial
- Welding
- Induction Heating
- Motor Drives
- Battery Chargers
- Switching Power Supplies (SMPS)
- Power Factor Correction (PFC)
Key features
- Optimized design
- Low area-specific on-resistance
- Low input capacitance (Ciss)
- Reduced capacitive switching loss
- High body diode ruggedness
- Avalanche energy rating (UIS)
- Optimal efficiency and operational performance
- Low cost
- Simple gate drive circuit
- Low figure of merit (FOM): Ron × Qg
- Fast switching
