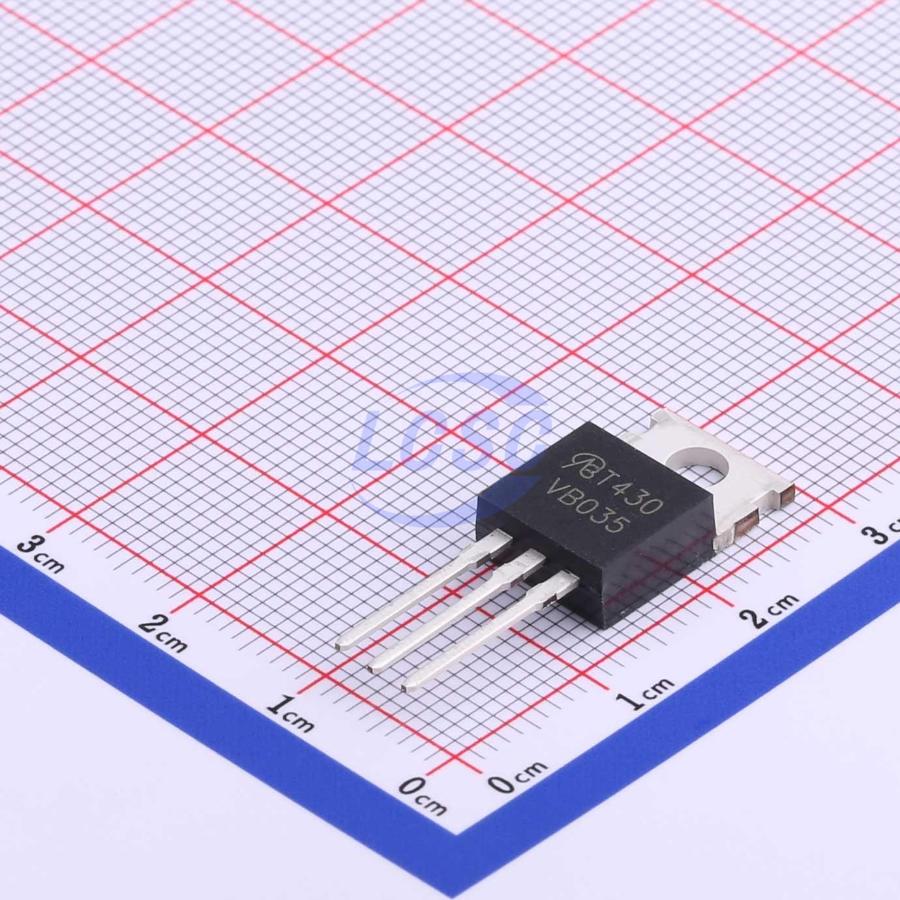

AOT430-VB
N-Channel 80V 100A 180W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 80V 100A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOT430-VB
- Store part #
- C878797
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C878797
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.95 | ₹129.95 |
| 10+ | ₹106.59 | ₹1,065.90 |
| 50+ | ₹92.42 | ₹4,621.00 |
| 100+ | ₹78.04 | ₹7,804.00 |
| 500+ | ₹71.47 | ₹35,735.00 |
| 1,000+ | ₹68.66 | ₹68,660.00 |
1 × ₹129.95
₹129.95
excl. GST
₹153.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AOT430-VB
₹129.95 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 1.12nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.855nF
- Pd - Power Dissipation
- 180W
- Reverse Transfer Capacitance (Crss)
- 376pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.75 g
Overview
Applications
- Primary-side switching
- Synchronous rectification
- DC/AC inverter
- LED backlighting
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME75N80CD-VB#C19188087VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹147.88 · 10 in stock | View |
 | IXTP76N075T-VB#C19188149VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 18 | ₹151.46 · 18 in stock | View |
 | IRFB3607PBF-VB#C19188210VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹147.88 · 20 in stock | View |
 | PHP79NQ08LT-VB#C19190113VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹147.88 · 20 in stock | View |
 | IRF2807ZPBF-VB#C20417506VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹171.12 · 20 in stock | View |
