AOSDatasheet (PDF)

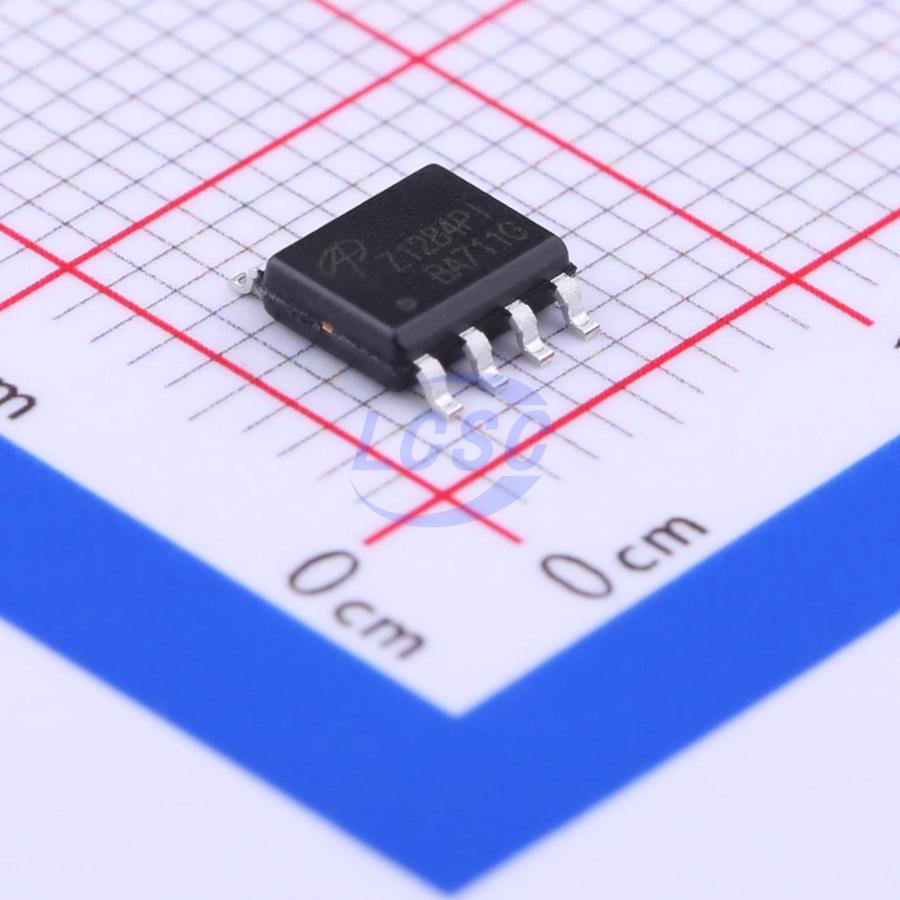

AOZ1284PI
200kHz~2MHz Step-down type Adjustable 800mV~30V 4A SOIC-8-EP Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8-EPROHS3 CompliantActive
High Efficiency 4A Buck Regulator
- Manufacturer
- AOS
- Manufacturer part #
- AOZ1284PI
- Store part #
- C48060
- Package / case
- SOIC-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,133 in stock
#C48060
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.43 | ₹113.43 |
| 10+ | ₹92.80 | ₹928.00 |
| 30+ | ₹82.58 | ₹2,477.40 |
| 100+ | ₹72.37 | ₹7,237.00 |
| 500+ | ₹58.68 | ₹29,340.00 |
| 1,000+ | ₹55.42 | ₹55,420.00 |
1 × ₹113.43
₹113.43
excl. GST
₹133.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AOZ1284PI
₹113.43 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 200kHz~2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3V~36V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~30V
- Output Current
- 4A
- Quiescent Current
- 1mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.119 g
Overview
The AOZ1284 is a current-mode step down regulator with integrated high side NMOS switch. It operates from a 3V to 36V input voltage range and supplies up to 4A of load current. Features include enable control, Power-On Reset, input under voltage lockout, external soft-start and thermal shut down. The AOZ1284 is available in EPAD SO-8 package.
Applications
- Point of load DC/DC conversion
- Set top boxes and cable modems
- Automotive applications
- DVD drives and HDDs
- LCD Monitors & TVs
- Telecom/Networking/Datacom equipment
Key features
- High voltage, high efficiency, simple to use
- 3.0V to 36V operating input voltage range
- 50mΩ internal NMOS
- Efficiency up to 95%
- Adjustable soft-start
- Output voltage adjustable from 0.8V to 30V
- 4A continuous output current
- Adjustable switching frequency from 200kHz to 2MHz
- Cycle-by-cycle current limit
- Short-circuit protection
- Over-voltage protection
- Over-temperature protection
- EPAD SO-8 package
