MSKSEMI

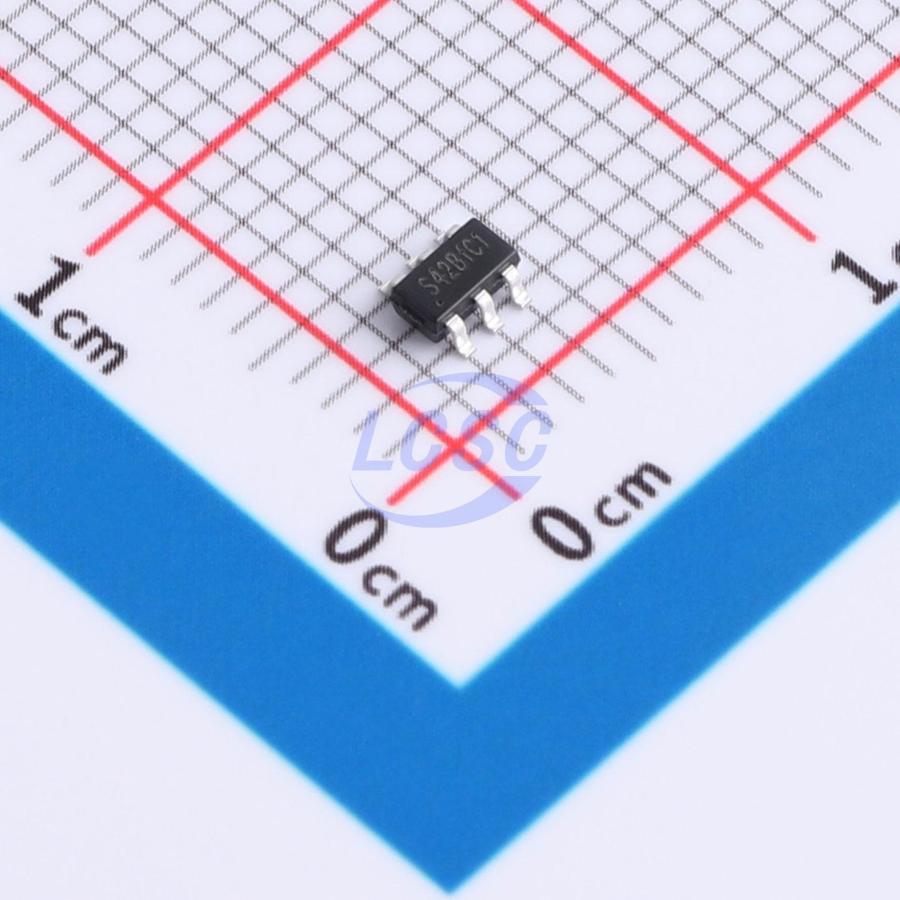

AOZ6682CI-MS

Step-down type 600kHz Adjustable 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: AOZ6682CI-MS
Store part #: C52988842
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,865 in stock

#C52988842

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹25.10	₹125.50
50+	₹19.88	₹994.00
150+	₹17.65	₹2,647.50
500+	₹14.86	₹7,430.00
3,000+	₹13.61	₹40,830.00
6,000+	₹12.87	₹77,220.00

Quantity (min 5, multiples of 5)

5 × ₹25.10

₹125.50

excl. GST

₹148.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AOZ6682CI-MS

₹125.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Function: Step-down type
Frequency - Switching: 600kHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.5V~18V
Switch tube (built-in/external): Built-in
Output Current: 2A
Quiescent Current: 400uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.045 g

Overview

AOZ6682CI-MS is a fully integrated, high-efficiency 2.0A synchronous rectification buck converter. The device operates with high efficiency across a wide output current load range. It provides two operating modes: PWM control and PFM switching control, achieving high efficiency over a wider load range. The device requires a minimal number of standard external components and is available in a RoHS-compliant 6-pin SOT23-6 package.

Applications

Distributed power systems
Digital set-top boxes
Flat panel TVs and monitors
Notebook computers
Wireless and DSL modems

Key features

High efficiency: up to 95% at 5V output
600kHz switching frequency operation
2.0A output current
No Schottky diode required
3.5V to 18V input voltage range
0.8V reference voltage
Current mode control with slope compensation for excellent line and load transient response
Integrated internal compensation, stable operation with low-ESR ceramic output capacitors
Overcurrent protection with hiccup mode
Input overvoltage protection
Thermal shutdown
Inrush current limiting and soft-start
SOT23-6 package
