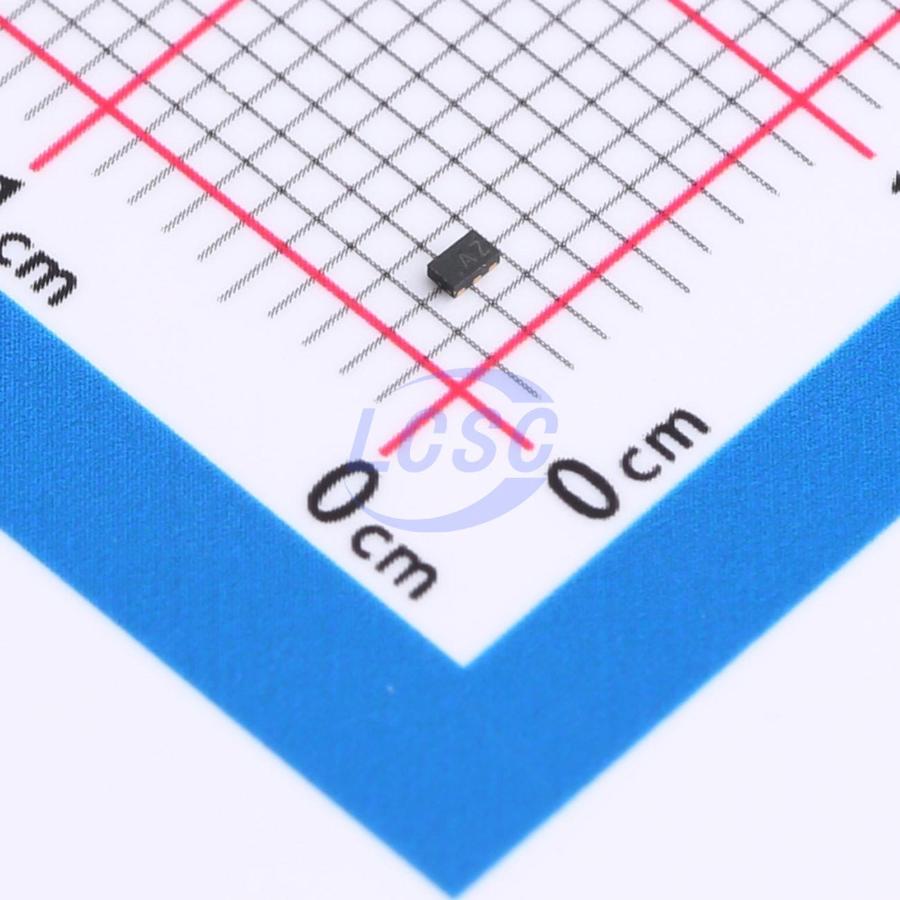

AOZ8844DT-TP TECH PUBLIC

AOZ8844DT-TP

9VC Clamp 5A Ipp DFN1308-5

DFN1308-5RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: AOZ8844DT-TP
Store part #: C41425653
Package / case: DFN1308-5
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C41425653

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
5+	₹21.79	₹108.95
50+	₹17.38	₹869.00
150+	₹15.49	₹2,323.50
500+	₹13.14	₹6,570.00
3,000+	₹12.08	₹36,240.00
6,000+	₹11.46	₹68,760.00

Quantity (min 5, multiples of 5)

5 × ₹21.79

₹108.95

excl. GST

₹128.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AOZ8844DT-TP

₹108.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 9V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 5A
Peak Pulse Power Dissipation (Ppp): 32W
Number of Channels: Four channels
Voltage - Breakdown: 12V
type: TVS
Reverse Leakage Current (Ir): 1uA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.024 g

Overview

Applications

HDMI, USB 3.0, MDDI, SATA ports
Portable Electronics
Computers and Peripheral
Digital visual interface
Microcontroller Input Protection

Key features

Low operating voltage: 5.0V
Low clamping voltage
Low capacitance: 0.6pF typical
Protects four I/O lines
Small package saves board space
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green" Device
Array of surge rated diodes with internal TVS Diode
ESD protection for high-speed data lines to IEC 61000-4-2 (ESD) ±20kV (air), ±15kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) 5A (8/20μs)
