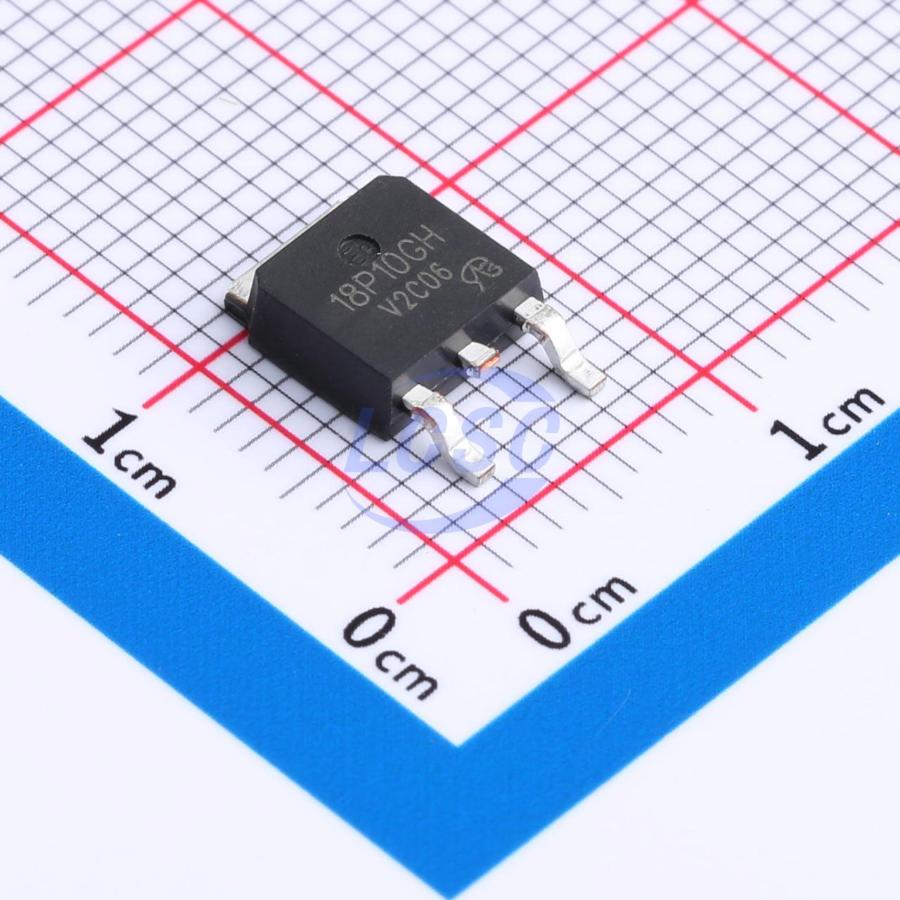

AP18P10GH-HF-VB
P-Channel 100V 16A 32.1W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 100V 16A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AP18P10GH-HF-VB
- Store part #
- C5179507
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C5179507
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.61 | ₹108.61 |
| 10+ | ₹88.44 | ₹884.40 |
| 30+ | ₹78.56 | ₹2,356.80 |
| 100+ | ₹68.48 | ₹6,848.00 |
| 500+ | ₹59.87 | ₹29,935.00 |
| 1,000+ | ₹56.72 | ₹56,720.00 |
1 × ₹108.61
₹108.61
excl. GST
₹128.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AP18P10GH-HF-VB
₹108.61 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 65pF
- Current - Continuous Drain(Id)
- 16A
- Ciss-Input Capacitance
- 1.055nF
- Pd - Power Dissipation
- 32.1W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 100mΩ@10V;120mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23.2nC@10V;11.7nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
GreenMOS high-voltage MOSFETs employ charge balance technology to achieve excellent low on-resistance and reduced gate charge. Designed to minimize conduction losses, they deliver superior switching performance and robust avalanche capability. The GreenMOS Z series integrates a fast recovery diode (FRD) to minimize reverse recovery time. It is suited for resonant switching topologies, enabling higher efficiency, improved reliability, and a smaller form factor.
Applications
- PC Power Supply - Telecom Power Supply - Server Power Supply - EV Charger - Motor Driver
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with RoHS Directive 2002/95/EC
