Wuxi Chipown Micro-electronics

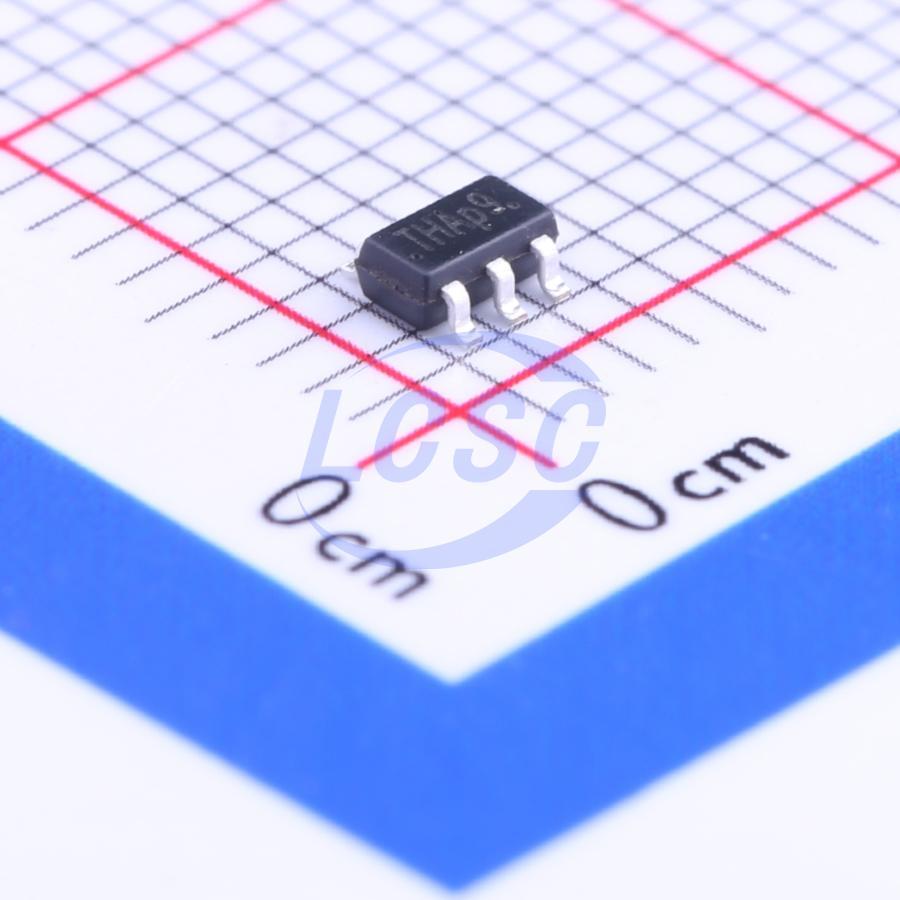

AP2004HTCER-ADJ

Boost Switching Regulator IC Adjustable 1 Output 3A SOT-23-6L

SOT-23-6LROHS CompliantActive

1MHz, 3A Boost Converter

Manufacturer: Wuxi Chipown Micro-electronics
Manufacturer part #: AP2004HTCER-ADJ
Store part #: C130339
Package / case: SOT-23-6L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,815 in stock

#C130339

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.68	₹58.40
50+	₹9.29	₹464.50
150+	₹8.08	₹1,212.00
500+	₹7.18	₹3,590.00
3,000+	₹6.47	₹19,410.00
6,000+	₹6.11	₹36,660.00

Quantity (min 5, multiples of 5)

5 × ₹11.68

₹58.40

excl. GST

₹68.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP2004HTCER-ADJ

₹58.40 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 1MHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 100uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.05 g

Overview

AP2004H is a constant-frequency peak current mode asynchronous PWM boost converter. An external Schottky diode is required. At light load, the AP2004H operates in light load mode. Quiescent current is 100uA, and shutdown current is less than 1uA. The internal NMOS on-resistance is 130mΩ, ensuring high efficiency across the entire output load range. A 3A peak current allows the AP2004H to deliver 1.5A output load current. Ideally suited for MID and mobile power applications. Input voltage range: 2.5 ~ 5.5V. The internal switching frequency is set at 1.0MHz. The AP2004H is available in a 6-pin flat SOT-23 package.
