Wuxi Chipown Micro-electronicsDatasheet (PDF)

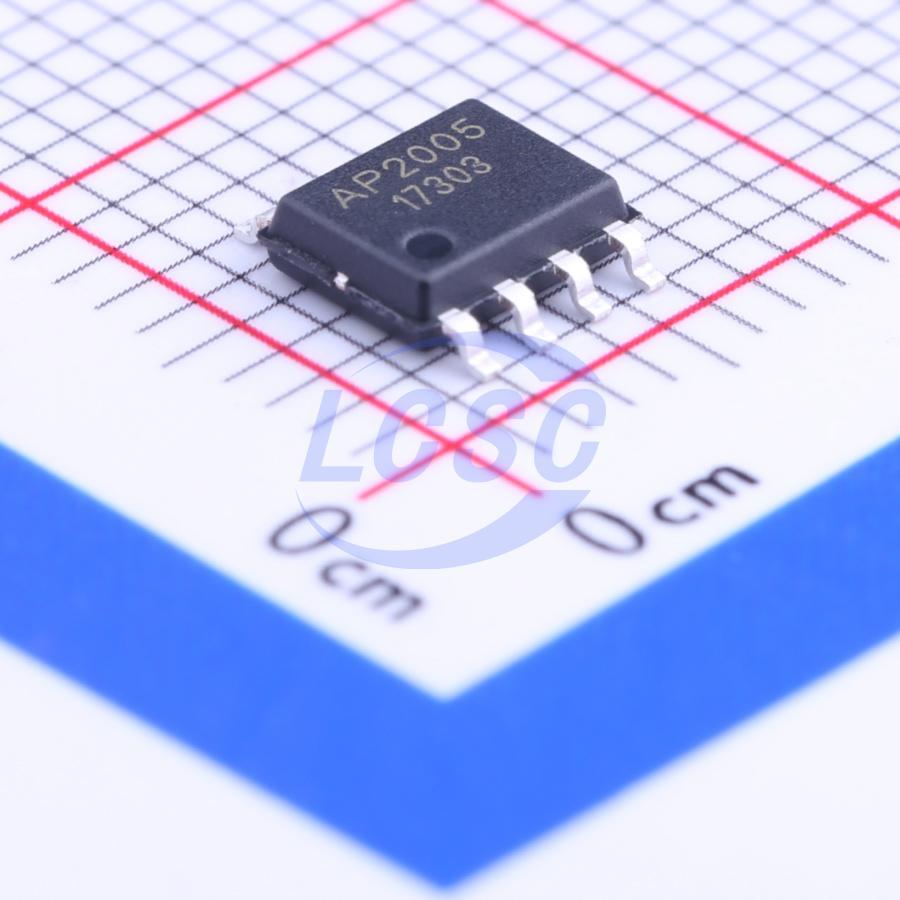

AP2005SPER
Boost Switching Regulator IC Adjustable 1 Output 4.5A ESOP-8
ESOP-8ROHS CompliantActive
4.5A Boost Current Mode PWM Converter
- Manufacturer
- Wuxi Chipown Micro-electronics
- Manufacturer part #
- AP2005SPER
- Store part #
- C130340
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,980 in stock
#C130340
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.06 | ₹165.30 |
| 50+ | ₹26.16 | ₹1,308.00 |
| 150+ | ₹23.21 | ₹3,481.50 |
| 500+ | ₹19.51 | ₹9,755.00 |
| 2,500+ | ₹17.87 | ₹44,675.00 |
| 4,000+ | ₹16.88 | ₹67,520.00 |
5 × ₹33.06
₹165.30
excl. GST
₹195.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AP2005SPER
₹165.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 4.5A
- Quiescent Current
- 200uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.159 g
Overview
AP2005 is a current-mode DC-DC boost converter. The PWM circuit with a built-in 0.05Ω power MOSFET enables high conversion efficiency. The internal compensation circuit also reduces external component count by up to 6. The non-inverting input of the error amplifier is connected to a precise 0.6V reference voltage. The internal soft-start function reduces inrush current. The AP2005 is available in an SOP8-PP package, saving PCB space for the application.
Applications
- Chargers
- LCD monitors
- Digital cameras
- Handheld devices
- Portable products
Key features
- Adjustable output up to 9V
- Low-noise 4.5A boost current-mode PWM converter
- Internal fixed PWM frequency: 1MHz
- Feedback reference voltage accuracy: 0.6V (±2%)
- Integrated internal 0.05Ω, 4.5A, 12V power MOSFET
- Shutdown current: 0.1μA
- Over-temperature protection
- Over-voltage protection
- Adjustable over-current protection: 0.7A~4.5A
- Package: SOP8-PP
