Wuxi Chipown Micro-electronicsDatasheet (PDF)

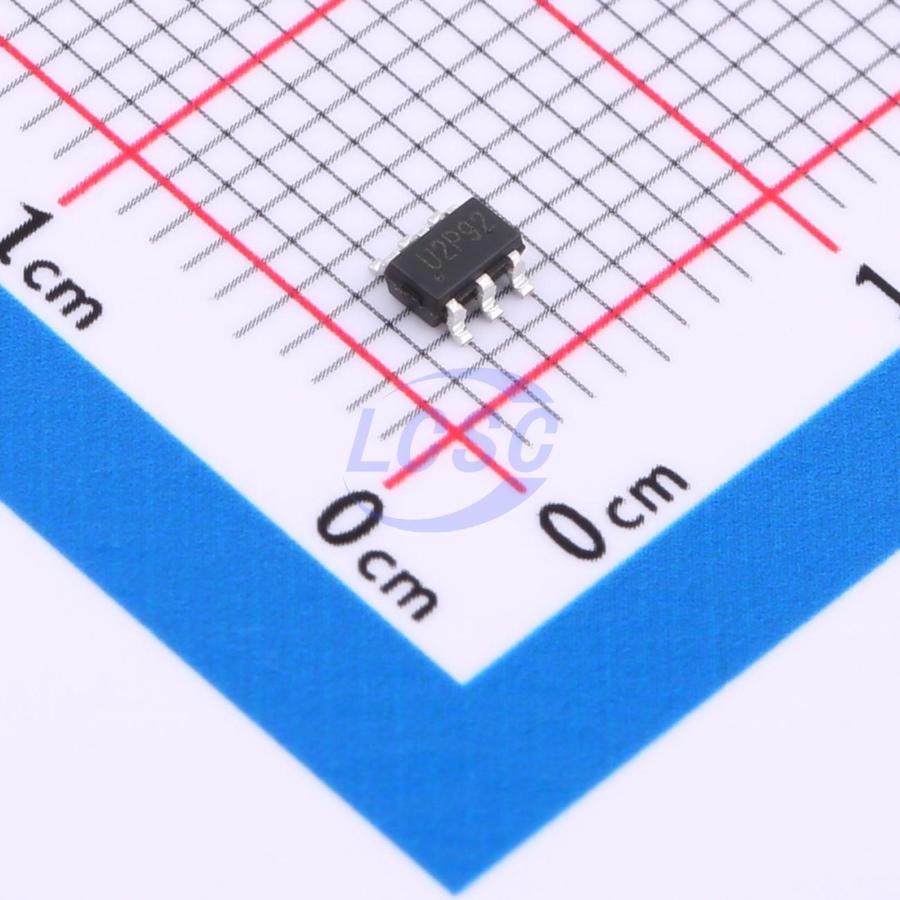

AP2008TC-A1
Boost Switching Regulator IC Adjustable 1 Output SOT-23-6L
SOT-23-6LROHS CompliantActive
1MHz, 2A Boost Converter with Adjustable Overcurrent Protection
- Manufacturer
- Wuxi Chipown Micro-electronics
- Manufacturer part #
- AP2008TC-A1
- Store part #
- C2974723
- Package / case
- SOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,530 in stock
#C2974723
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.31 | ₹116.55 |
| 50+ | ₹18.27 | ₹913.50 |
| 150+ | ₹16.11 | ₹2,416.50 |
| 500+ | ₹13.43 | ₹6,715.00 |
| 3,000+ | ₹12.22 | ₹36,660.00 |
| 6,000+ | ₹11.50 | ₹69,000.00 |
5 × ₹23.31
₹116.55
excl. GST
₹137.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2008TC-A1
₹116.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1MHz
- Number of Outputs
- 1
- Function
- Boost
- Features
- Adjustable current limiting;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 3V~12V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~20V
- Output Current
- 2A
- Quiescent Current
- 200uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
AP2008A is a constant-frequency peak current mode asynchronous PWM boost converter. An external Schottky diode is required. At light load, AP2008A operates in light load mode. With a quiescent current of 200 μA and an internal NMOS on-resistance of 200 mΩ, high efficiency is ensured across the full output load range. Leaving the OC pin floating allows AP2008A to deliver a maximum output load current of 0.8 A; adjusting the resistor from the OC pin to GND sets the peak current limit. AP2008A is well-suited for MID and mobile power applications. Input voltage range: 3 V ~ 12 V. The internal switching frequency is fixed at 1.0 MHz. AP2008A is available in a 6-pin SOT-23 package.
Applications
- White LED driver
- NIC power supply for PCI or PCI-Express slots
- MID and mobile power supply
Key features
- Wide input voltage range: 3 V ~ 12 V, maximum output voltage up to 20 V
- High efficiency: up to 92%
- 1.0 MHz fixed switching frequency
- Adjustable switch current limiting
- Low on-resistance: 0.2 Ω
- Accurate reference voltage: 0.6 V
- Miniaturized peripheral components
- Space-saving SOT-23-6L package
