VBsemi ElecDatasheet (PDF)

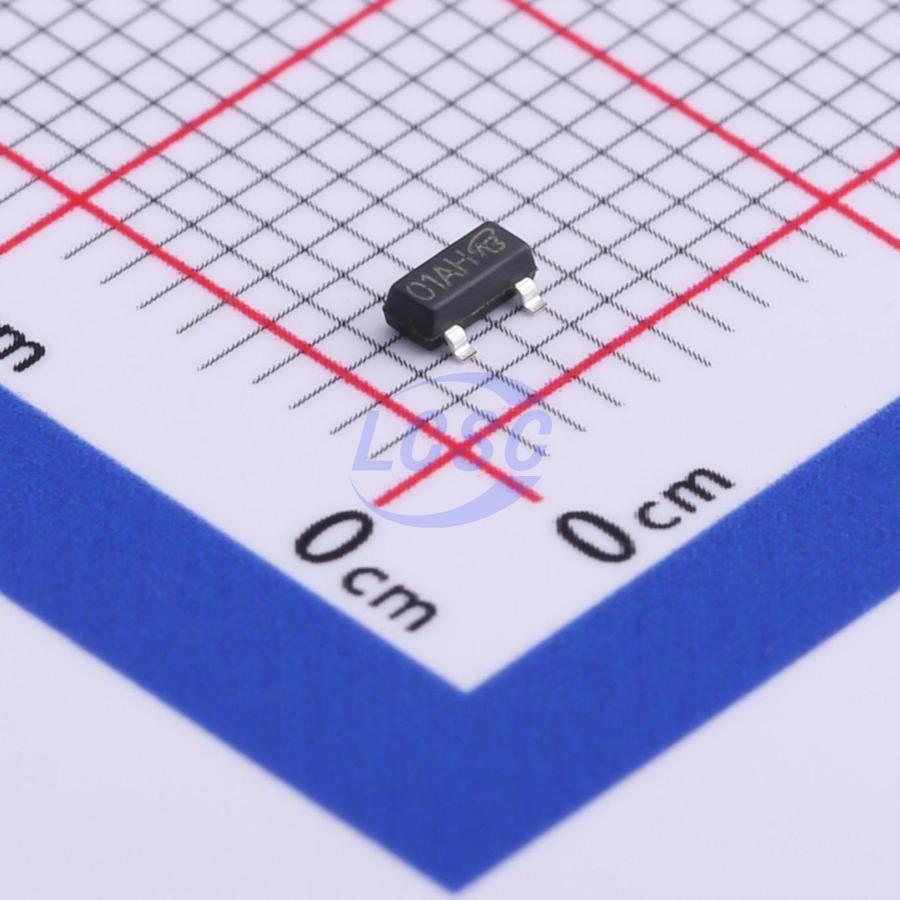

AP2301N-VB
P-Channel 20V 3.5A 1.6W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 20V 3.5A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AP2301N-VB
- Store part #
- C558070
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C558070
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.64 | ₹58.20 |
| 50+ | ₹9.45 | ₹472.50 |
| 150+ | ₹8.35 | ₹1,252.50 |
| 500+ | ₹7.53 | ₹3,765.00 |
| 3,000+ | ₹6.05 | ₹18,150.00 |
| 6,000+ | ₹5.72 | ₹34,320.00 |
5 × ₹11.64
₹58.20
excl. GST
₹68.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2301N-VB
₹58.20 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 3.5A
- Ciss-Input Capacitance
- 835pF
- Pd - Power Dissipation
- 1.6W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 60mΩ@10V;65mΩ@4.5V;80mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 6.4nC@2.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
Applications
- Load switch
- Power amplifier switch
- DC/DC converter
Key features
- Meets halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- RoHS compliant per directive 2002/95/EC
