Wuxi Chipown Micro-electronicsDatasheet (PDF)

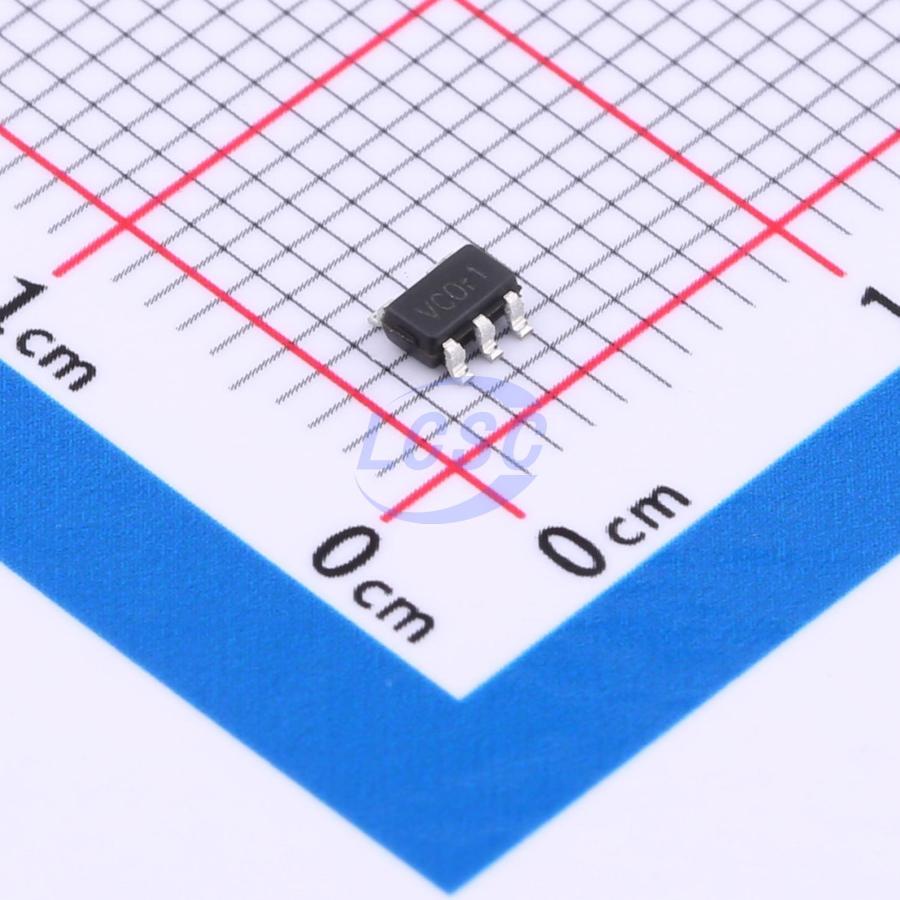

AP2900TB-A1
Buck Switching Regulator IC Adjustable 1 Output 0.7A SOT-23-5L
SOT-23-5LROHS CompliantActive
40V, 0.7A High-Performance Synchronous Buck Regulator
- Manufacturer
- Wuxi Chipown Micro-electronics
- Manufacturer part #
- AP2900TB-A1
- Store part #
- C2930954
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,340 in stock
#C2930954
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.34 | ₹156.70 |
| 50+ | ₹24.77 | ₹1,238.50 |
| 150+ | ₹21.95 | ₹3,292.50 |
| 500+ | ₹18.44 | ₹9,220.00 |
| 3,000+ | ₹16.87 | ₹50,610.00 |
| 6,000+ | ₹15.93 | ₹95,580.00 |
5 × ₹31.34
₹156.70
excl. GST
₹184.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2900TB-A1
₹156.70 for 5 + GST
Specifications
- Frequency - Switching
- 100kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 6V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 700mA
- Quiescent Current
- 420uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
AP2900 is a high-efficiency synchronous buck regulator capable of delivering 0.7 A output current over a wide input voltage range of 6 V to 40 V. The output voltage is adjustable via a resistor divider connected to the FB pin, with a switching frequency of 100 kHz. AP2900 integrates low on-resistance high-side and low-side power MOSFETs, reducing conduction impedance while eliminating the need for an external Schottky diode. In addition, the built-in compensation architecture eliminates external RC compensation components, further reducing the external component count. As a result, AP2900 is ideal for applications requiring a minimal BOM and single-layer PCB layout. The specially designed EMI-optimized circuit architecture is well suited for applications requiring safety certification. Comprehensive protection features include overcurrent protection, over-temperature protection, short-circuit protection, and undervoltage lockout (UVLO). AP2900 is available in a SOT23-5L package for space-saving layout.
Applications
- MCU control systems and I/O power supply
- Set-top boxes
- Flat-panel TVs and monitors
- Industrial distributed power supplies
- Portable instruments
Key features
- Wide input voltage range: 6 V to 40 V
- Maximum 0.7 A continuous output current, 1 A peak output current
- Up to 92% efficiency
- 100 kHz switching frequency
- Specially designed EMI-optimized circuit architecture
- Built-in soft-start circuit
- Built-in compensation circuit
- Single-layer PCB layout capable
- Input undervoltage lockout
- Cycle-by-cycle current limiting
- Output short-circuit protection
- Thermal shutdown, SOT23-5L package
