Wuxi Chipown Micro-electronics

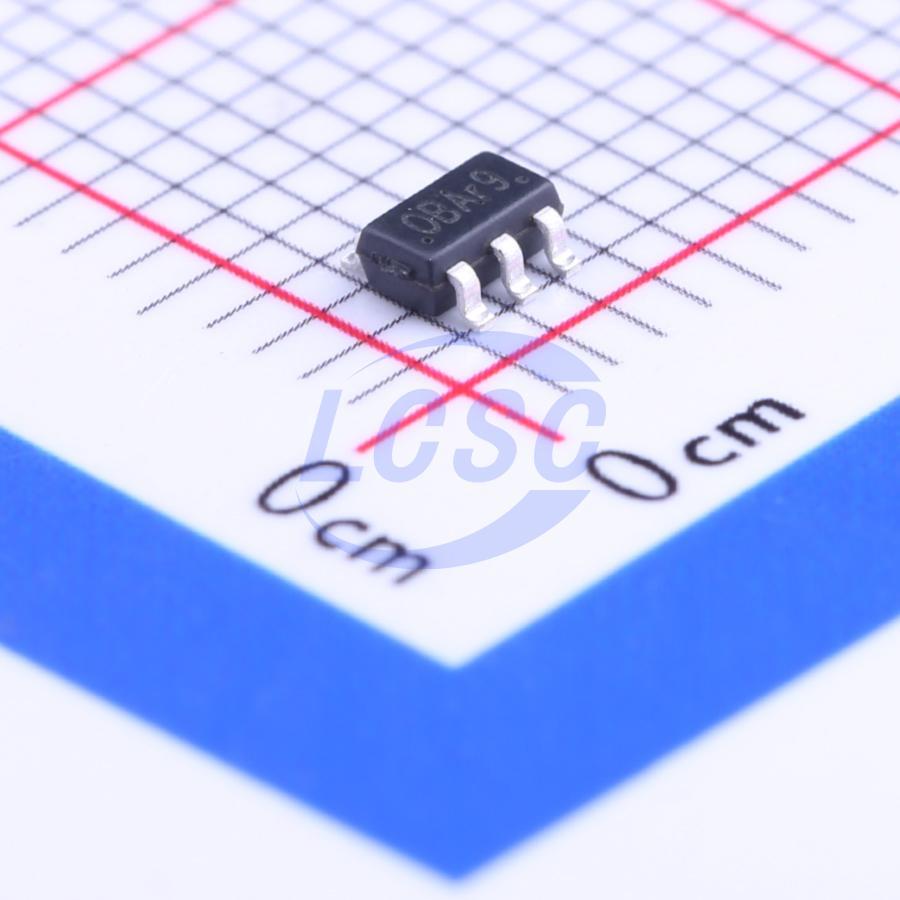

AP3127B025MR

LED Driver IC 1 Output DC-DC Boost PWM Dimming 20mA SOT-23-6L

SOT-23-6LROHS CompliantActive

Step-up DC/DC converter, white LED driver

Manufacturer: Wuxi Chipown Micro-electronics
Manufacturer part #: AP3127B025MR
Store part #: C130343
Package / case: SOT-23-6L
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,880 in stock

#C130343

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹13.77	₹68.85
50+	₹11.11	₹555.50
150+	₹9.79	₹1,468.50
500+	₹8.78	₹4,390.00

Quantity (min 5, multiples of 5)

5 × ₹13.77

₹68.85

excl. GST

₹81.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP3127B025MR

₹68.85 for 5 + GST

Specifications

Frequency - Switching: 800kHz~1.2MHz
Features: Over Voltage Protection
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Topology: Boost
Number of Channels: 1
Type: DC-DC
Output Current: 20mA
Voltage - Input(DC): 2.5V~6V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

The AP3127B series is a fixed-frequency, constant-current boost DC/DC converter designed for backlight driving in mobile phones, PDAs, digital cameras, and other electronic devices. The output voltage can reach 23V; a 3.2V input can drive six series-connected LEDs, while a 2.5V input can drive two parallel strings of LEDs (three LEDs in series per string). LED brightness can be controlled by adjusting the duty cycle of the PWM signal on the CE pin. In addition, an integrated MOSFET with an on-resistance of 0.8Ω allows the use of miniature inductors and capacitors externally, reducing PCB area.
