Wuxi Chipown Micro-electronics

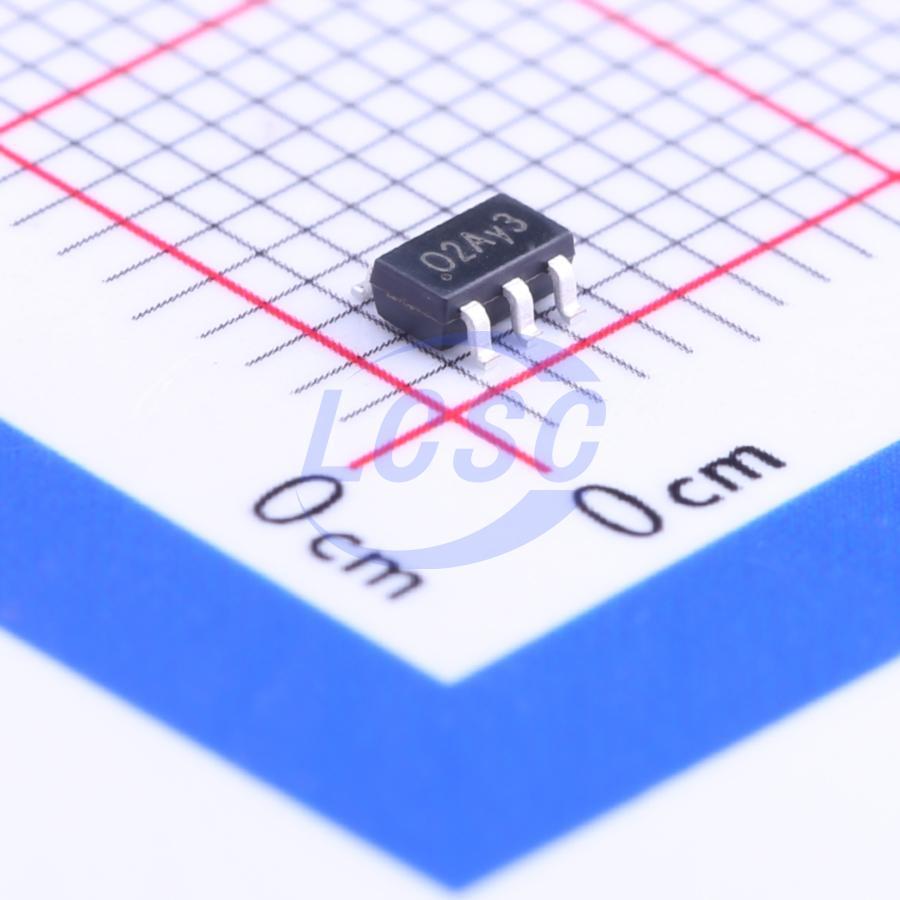

AP3128AE3036ES6

LED Driver IC 1 Output DC-DC Boost PWM Dimming 1.2A SOT-23-6L

SOT-23-6LROHS CompliantActive

Asynchronous Step-Up 10-White-LED Driver

Manufacturer: Wuxi Chipown Micro-electronics
Manufacturer part #: AP3128AE3036ES6
Store part #: C130344
Package / case: SOT-23-6L
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,920 in stock

#C130344

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.83	₹94.15
50+	₹15.39	₹769.50
150+	₹13.67	₹2,050.50
500+	₹12.38	₹6,190.00
3,000+	₹10.49	₹31,470.00
6,000+	₹9.98	₹59,880.00

Quantity (min 5, multiples of 5)

5 × ₹18.83

₹94.15

excl. GST

₹111.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP3128AE3036ES6

₹94.15 for 5 + GST

Specifications

Frequency - Switching: 750kHz~1.25MHz
Features: Over Voltage Protection;Over-Temperature Protection (OTP)
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Topology: Boost
Number of Channels: 1
Type: DC-DC
Output Current: 1.2A
Voltage - Input(DC): 2.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

AP3128A is a constant-current DC/DC converter specifically designed for white LED driving. The internal MOSFET supports up to 10 white LED backlight and OLED power supply applications simultaneously, and the internal soft-start function reduces inrush current. The AP3128A operates in current mode at a fixed 1.0MHz frequency, regulating LED current via an external current-sense resistor. The 300mV low feedback voltage minimizes power dissipation. Additional features include overcurrent protection, over-temperature protection, undervoltage protection, and overvoltage protection. The AP3128A is available in compact SOT-23-6L and DFN-8L 2×2 packages.
