TECH PUBLICDatasheet (PDF)

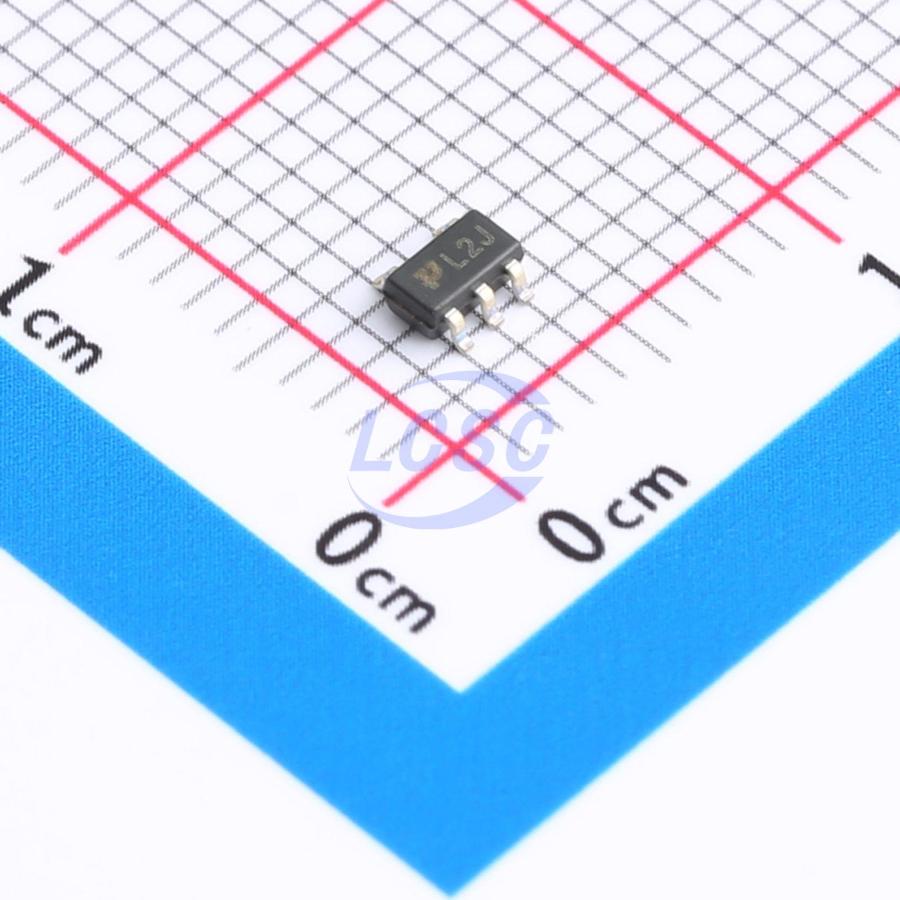

AP3428AKTTR-TP
Step-down type 1.5MHz Adjustable 1.5A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AP3428AKTTR-TP
- Store part #
- C47117513
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,370 in stock
#C47117513
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.20 | ₹76.00 |
| 50+ | ₹13.23 | ₹661.50 |
| 150+ | ₹12.38 | ₹1,857.00 |
| 500+ | ₹11.31 | ₹5,655.00 |
| 3,000+ | ₹10.85 | ₹32,550.00 |
| 6,000+ | ₹10.56 | ₹63,360.00 |
5 × ₹15.20
₹76.00
excl. GST
₹89.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP3428AKTTR-TP
₹76.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 1.5MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Light load efficient mode;Overcurrent Protection
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Quiescent Current
- 60uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.065 g
Overview
Applications
- Network equipment
- Network cameras
- LCD TVs
- DSL modems
- Access point routers
- Digital TVs
- Set-top boxes
Key features
- Supply voltage range: 2.5V to 5.5V
- Guaranteed 1.5A continuous load current
- 2% accurate 0.6V reference voltage
- Cycle-by-cycle peak current limiting
- Light-load high-efficiency PFM mode
- 100% duty cycle support under dropout conditions
- Internal switches (high-side/low-side) low on-resistance: 250/200 mΩ
- Fixed 1.5MHz switching frequency
- Up to 96% efficiency
- Short-circuit protection
- Thermal shutdown
- Output overvoltage protection
- Inrush current limiting and soft-start
- Slope compensation current mode control with excellent line and load transient response
- Low quiescent current: 60μA
- Shutdown current <1μA
- RoHS and halogen-free compliant
- Compact package: SOT23-5
