TECH PUBLIC

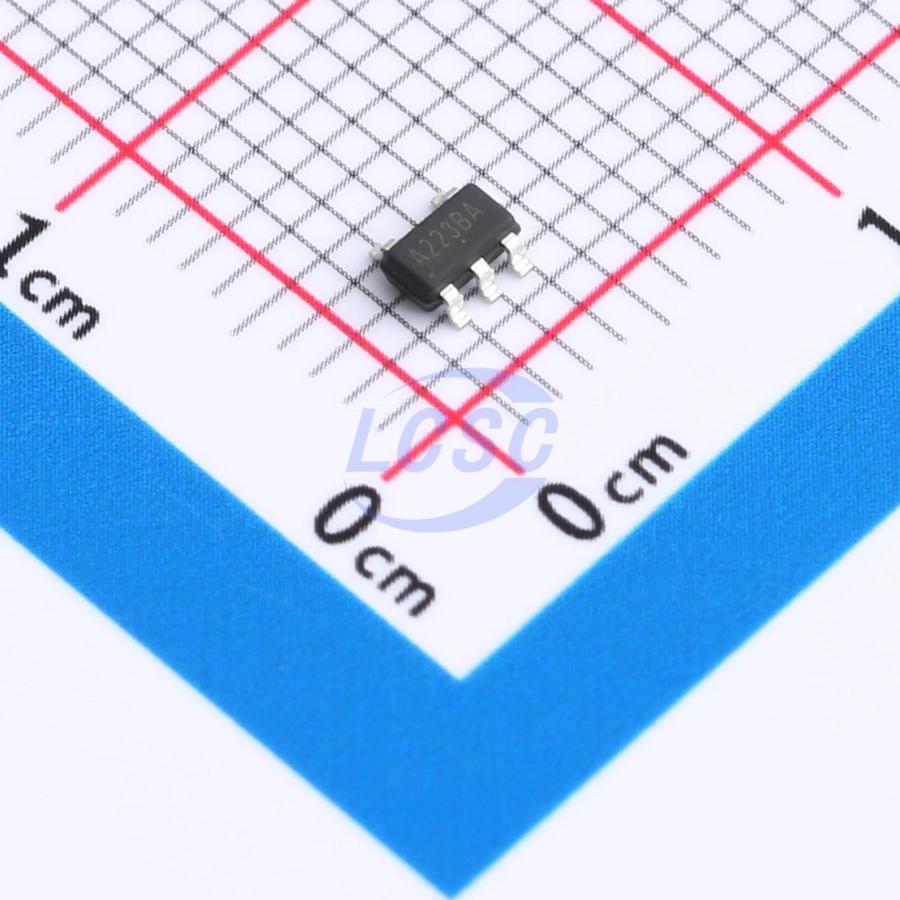

AP3429AKTTR-TP

Buck Switching Regulator IC Adjustable 1 Output 2A SOT-23-5

SOT-23-5RoHSActive

1.5MHZ, 2A STEP-DOWN DC-DC BUCK CONVERTER

Manufacturer: TECH PUBLIC
Manufacturer part #: AP3429AKTTR-TP
Store part #: C47117514
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,000 in stock

#C47117514

Stock & price checked 15 days ago

Quantity	Unit price	Pack price
5+	₹10.48	₹52.40
50+	₹8.26	₹413.00
150+	₹7.14	₹1,071.00
500+	₹6.31	₹3,155.00
3,000+	₹5.64	₹16,920.00
6,000+	₹5.31	₹31,860.00

Quantity (min 5, multiples of 5)

5 × ₹10.48

₹52.40

excl. GST

₹61.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP3429AKTTR-TP

₹52.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Step-down type
Frequency - Switching: 1.5MHz
Number of Outputs: 1
Features: Output discharge
Topology: Buck
Output Type: Adjustable
Operating Voltage: 2.7V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 2A
Quiescent Current: 40uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.039 g

Overview

Applications

LCD TV
Set Top Box
Net PC
Mini-Notebook PC
Access Point Router

Key features

Up to 2A Max Output Current
2.7V to 5.5V Input Voltage Range
Fixed 1.5MHz Switching Frequency
Light Load Operation
100% Duty Operation
Internal Compensation
RoHS Compliant and Halogen Free
Compact package: SOT23-5
