VBsemi ElecDatasheet (PDF)

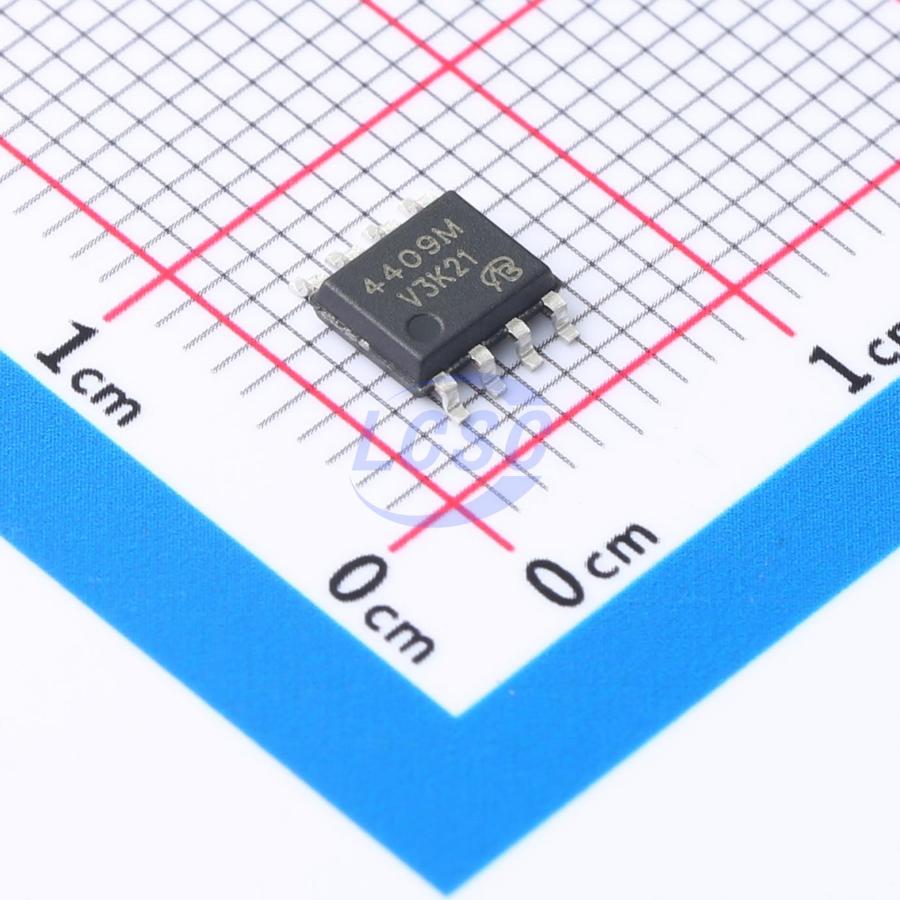

AP4409M-VB
P-Channel 30V 13.5A Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 30V 13.5A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AP4409M-VB
- Store part #
- C19632052
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C19632052
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.47 | ₹72.47 |
| 10+ | ₹56.93 | ₹569.30 |
| 30+ | ₹50.42 | ₹1,512.60 |
| 100+ | ₹42.02 | ₹4,202.00 |
| 500+ | ₹38.23 | ₹19,115.00 |
| 1,000+ | ₹36.13 | ₹36,130.00 |
1 × ₹72.47
₹72.47
excl. GST
₹85.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AP4409M-VB
₹72.47 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 455pF
- Current - Continuous Drain(Id)
- 13.5A
- Ciss-Input Capacitance
- 2.55nF
- Reverse Transfer Capacitance (Crss)
- 390pF
- RDS(on)
- 11mΩ@10V;15mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 57nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
Applications
- Load Switch
- Notebook Adapter Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STM4439A-VB#C22389480VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹72.47 · 20 in stock | View |
 | VBZA30P15#C4355083VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 100 | ₹75.62 · 100 in stock | View |
 | FDS6679AZ-NL-VB#C6705261VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 425 | ₹68.86 · 425 in stock | View |
 | Si4463CDY-T1-GE3-VB#C6705315VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 2 | ₹78.02 · 2 in stock | View |
 | VBZA4425#C700588VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 361 | ₹76.05 · 361 in stock | View |
