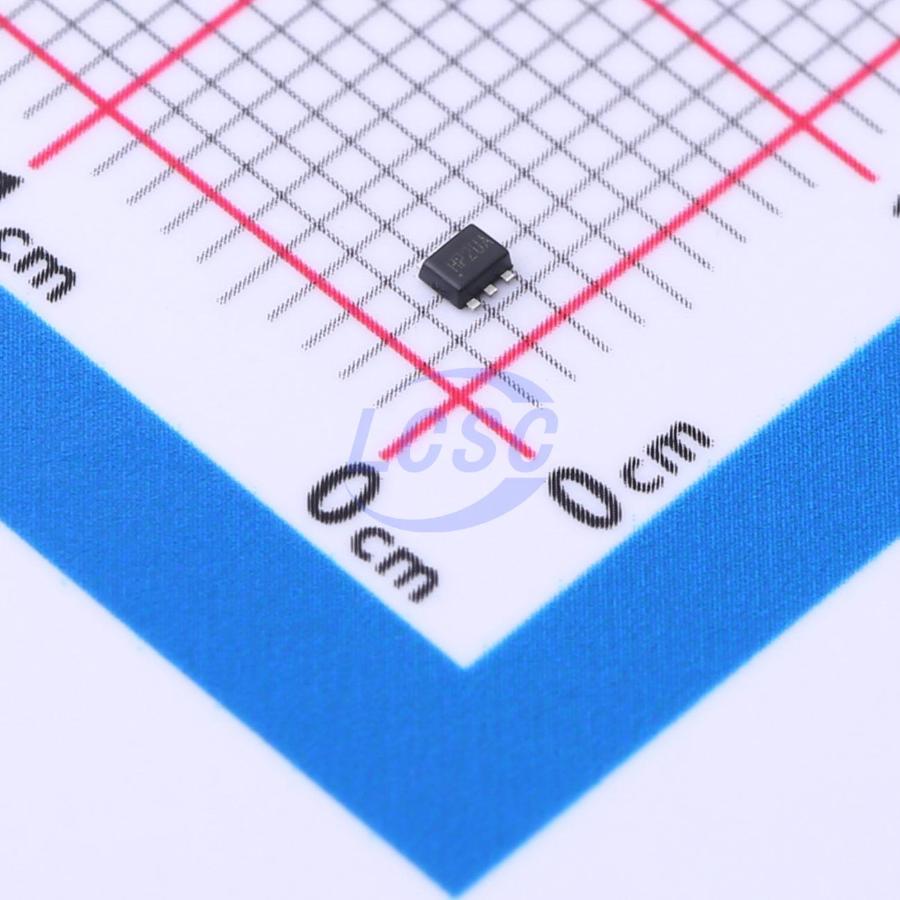

AP61300Z6-7

The AP61300/AP61302 is a 3A, synchronous buck converter with a wide input voltage range of 2.4V to 5.5V. The device fully integrates a 70mΩ high- side power MOSFET and a 50mΩ low- side power MOSFET to provide high- efficiency, step- down, DC- DC conversion. The AP61300/AP61302 device is easily used by minimizing the external component count due to its adoption of Constant On- Time (COT) control to achieve fast transient response, easy loop stabilization, and low output voltage ripple. The device is available in a SOT563 package.

Applications

• 5V distributed power bus supplies
• White goods and small home appliances
• FPGA, DSP, and ASIC supplies
• Network video cameras
• Wireless routers
• Consumer electronics
• General-purpose point-of-load applications

Key features

• VIN: 2.4V to 5.5V
• Output Voltage (VOUT): 0.6V to 3.6V
• 3A Continuous Output Current
• 0.6V ± 2% Reference Voltage
• 19µA Low Quiescent Current (Pulse-Frequency Modulation)
• 2.2MHz Switching Frequency (VIN = 5V, VOUT = 1.8V)
• Up to 84% Efficiency at 5mA Light Load
• Programmable Operation Mode Through EN
• Pulse-Frequency Modulation
• Pulse-Width Modulation Regardless of Output Load
• Low-Dropout (LDO) Mode
• Power-Good Indicator
• Protection Circuitry
• Undervoltage Lockout (UVLO)
• VIN Overvoltage Protection (OVP)
• Peak Current Limit
• Valley Current Limit
• Thermal Shutdown
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. "Green" Device
• An automotive-compliant part is available under separate datasheet (AP61300/Q/AP61302Q)
