DIODES

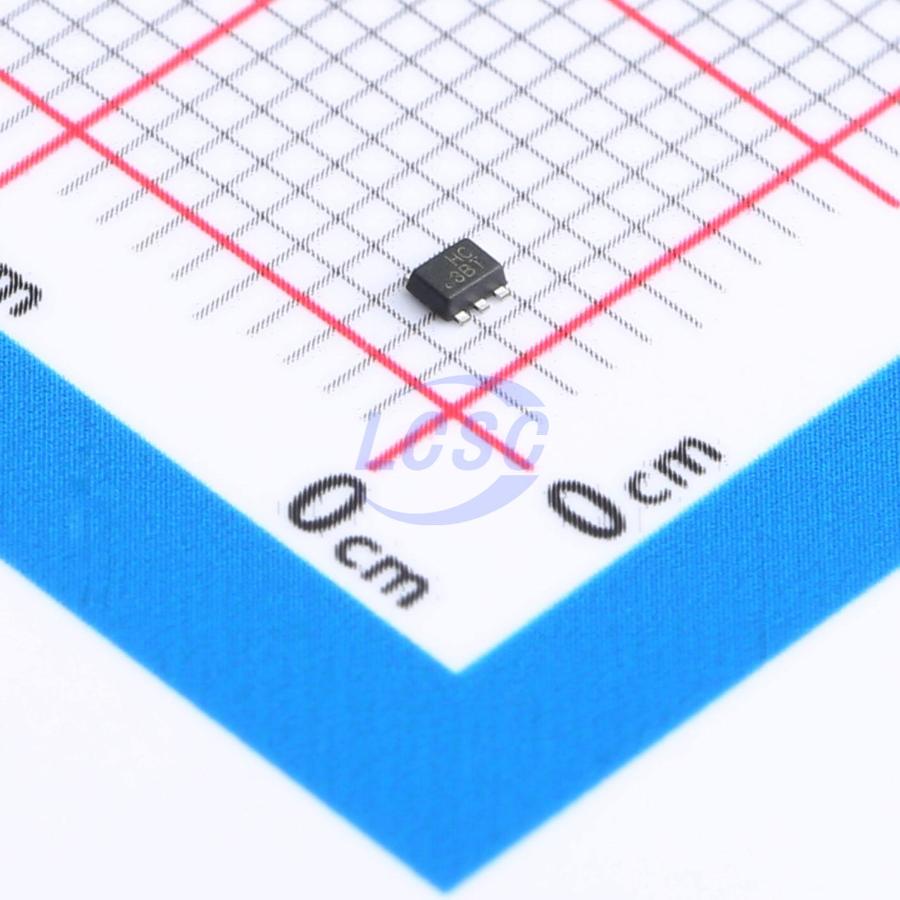

AP62150Z6-7

1.3MHz Step-down type Adjustable 800mV~7V 1.5A SOT-563 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-563ROHS3 CompliantActive

4.2V to 18V Input, 1.5A Low IQ Synchronous Buck Converter

Manufacturer: DIODES
Manufacturer part #: AP62150Z6-7
Store part #: C3193206
Package / case: SOT-563
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,090 in stock

#C3193206

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹49.14	₹245.70
50+	₹38.74	₹1,937.00
150+	₹34.28	₹5,142.00
500+	₹28.71	₹14,355.00
3,000+	₹26.24	₹78,720.00
6,000+	₹24.75	₹1,48,500.00

Quantity (min 5, multiples of 5)

5 × ₹49.14

₹245.70

excl. GST

₹289.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP62150Z6-7

₹245.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 1.3MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;EMI optimization (spread spectrum);Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.2V~18V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~7V
Output Current: 1.5A
Quiescent Current: 135uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

The AP62150 is a 1.5A, synchronous buck converter with a wide input voltage range of 4.2V to 18V. The device fully integrates a 90mΩ highside power MOSFET and a 65mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion. The AP62150 device is easily used by minimizing the external component count due to its adoption of Constant On-Time (COT) control to achieve fast transient response, easy loop stabilization, and low output voltage ripple. The AP62150 design is optimized for Electromagnetic Interference (EMI) reduction. The device has a proprietary gate driver scheme to resist switching node ringing without sacrificing MOSFET turn-on and turn-off times, which reduces high-frequency radiated EMI noise caused by MOSFET switching. AP62150 is available in SOT563 (Standard) and TSOT26 (Standard) packages.

Applications

5V and 12V Distributed Power Bus Supplies
Flat Screen TV Sets and Monitors
White Goods and Small Home Appliances
FPGA, DSP, and ASIC Supplies
Home Audio
Network Systems
Gaming Consoles
Consumer Electronics General Purpose Point of Load

Key features

VIN: 4.2V to 18V
Output Voltage (VOUT): 0.8V to 7V
1.5A Continuous Output Current
0.8V ± 1% Reference Voltage (TA = +25°C)
135μA Low Quiescent Current (Pulse Frequency Modulation)
1.3MHz Switching Frequency (VIN = 12V, VOUT = 5V)
Proprietary Gate Driver Design for Best EMI Reduction
Protection Circuitry: Undervoltage Lockout (UVLO), Cycle-by-Cycle Valley Current Limit, Thermal Shutdown
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
