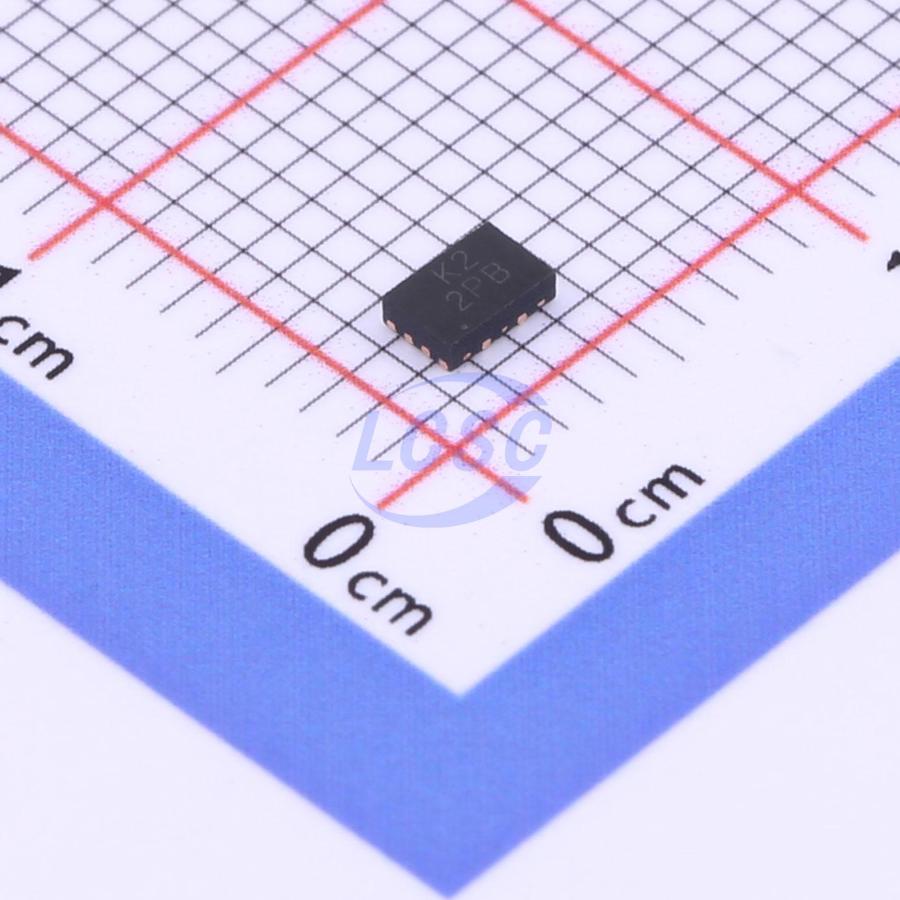

AP62600SJ-7

The AP62600 is a 6A, synchronous buck converter with a wide input voltage range of 4.5V to 18V. The device fully integrates a 36mΩ high-side power MOSFET and a 14mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion. The AP62600 device is easily used by minimizing the external component count due to its adoption of Constant On-Time (COT) control to achieve fast transient response, easy loop stabilization, and low output voltage ripple. The AP62600 design is optimized for Electromagnetic Interference (EMI) reduction. The device has a proprietary gate driver scheme to resist switching node ringing without sacrificing MOSFET turn-on and turn-off time, which reduces high-frequency radiated EMI noise caused by MOSFET switching. The device is available in a V-QFN2030-12 (Type A) package.

Applications

• 5V and 12V distributed power bus supplies
• Television sets and monitors
• White goods and small home appliances
• FPGA, DSP, and ASIC supplies
• Home audios
• Network systems
• Gaming consoles
• Consumer electronics General purpose point of loads

Key features

• VIN: 4.5V to 18V
• Output Voltage (VOUT): 0.6V to 7V
• 6A Continuous Output Current
• 0.6V ± 1% Reference Voltage
• 360μA Quiescent Current
• Selectable Switching Frequency: 400kHz, 800kHz, 1.2MHz
• Selectable Operation Modes: Pulse Frequency Modulation (PFM), Ultrasonic Mode (USM), Pulse Width Modulation (PWM)
• Programmable Soft-Start Time
• Proprietary Gate Driver Design for Best EMI Reduction
• Power-Good Indicator
• Precision Enable Threshold to Adjust UVLO Protection Circuitry
• Undervoltage Lockout (UVLO)
• Cycle-by-Cycle Valley Current Limit
• Thermal Shutdown
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
