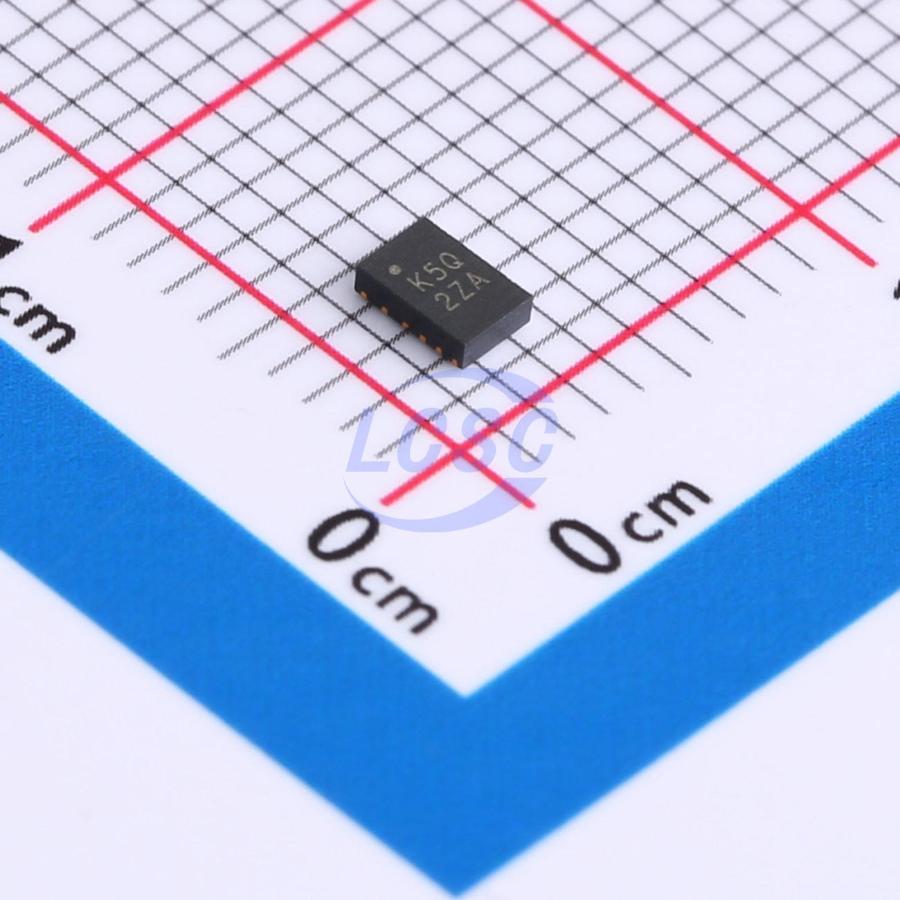

AP63357QZV-7
450kHz Step-down type Adjustable 3.5A 800mV~32V VDFN-13(2x3) Voltage Regulators - DC DC Switching Regulators RoHS
VDFN-13(2x3)ROHS3 CompliantActive
32V 3.5A Low Quiescent Current Synchronous Buck Converter
- Manufacturer
- DIODES
- Manufacturer part #
- AP63357QZV-7
- Store part #
- C3194572
- Package / case
- VDFN-13(2x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,010 in stock
#C3194572
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹156.97 | ₹156.97 |
| 10+ | ₹130.96 | ₹1,309.60 |
| 30+ | ₹116.87 | ₹3,506.10 |
| 100+ | ₹96.27 | ₹9,627.00 |
| 500+ | ₹89.12 | ₹44,560.00 |
| 1,000+ | ₹85.86 | ₹85,860.00 |
1 × ₹156.97
₹156.97
excl. GST
₹185.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP63357QZV-7
₹156.97 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Frequency - Switching
- 450kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;EMI optimization (spread spectrum);External compensation;Light load efficient mode;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.8V~32V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3.5A
- Output Voltage
- 800mV~32V
- Quiescent Current
- 22uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The AP63356Q/AP63357Q is an automotive-compliant, 3.5A, synchronous buck converter with a wide input voltage range of 3.8V to 32V. The device fully integrates a 74mΩ high-side power MOSFET and a 40mΩ low-side power MOSFET to provide high-efficiency stepdown DC-DC conversion. The AP63356Q/AP63357Q device is easily used by minimizing the external component count due to its adoption of peak current mode control along with its integrated loop compensation network. The AP63356Q/AP63357Q design is optimized for Electromagnetic Interference (EMI) reduction. The device has a proprietary gate driver scheme to resist switching node ringing without sacrificing MOSFET turn-on and turn-off times, which reduces high-frequency radiated EMI noise caused by MOSFET switching. AP63356Q/AP63357Q also features Frequency Spread Spectrum (FSS) with a switching frequency jitter of ±6%, which reduces EMI by not allowing emitted energy to stay in any one frequency for a significant period of time. The device is available in a 3mm × 2mm, V-DFN3020-13/SWP (Type A1), package with wettable flanks.
Applications
- 12V Automotive Power Systems
- Automotive Infotainment
- Automotive Instrument Clusters
- Automotive Body Electronics and Lighting
- Automotive Telematics
- Advanced Driver Assistance Systems
Key features
- AEC-Q100 Qualified with the Following Results: Device Temperature Grade 1: -40°C to +125°C TA Range; Device HBM ESD Classification Level H2; Device CDM ESD Classification Level C5
- VIN: 3.8V to 32V
- 3.5A Continuous Output Current
- 0.8V ±1% Reference Voltage
- 22μA Low Quiescent Current (Pulse Frequency Modulation)
- 450kHz Switching Frequency
- Pulse Width Modulation (PWM) Regardless of Output Load; AP63356Q Supports Pulse Frequency Modulation (PFM)
- Up to 86% Efficiency at 5mA Light Load
- Proprietary Gate Driver Design for Best EMI Reduction
- Frequency Spread Spectrum (FSS) to Reduce EMI
- Low-Dropout (LDO) Mode
- Power Good Indicator with 5MΩ Internal Pull-up
- Precision Enable Threshold to Adjust UVLO Protection Circuitry: Undervoltage Lockout (UVLO); Output Undervoltage Protection (UVP); Cycle-by-Cycle Peak Current Limit; Thermal Shutdown
- Lead-Free Finish; Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| AP63356QZV-7#C3194571DIODES · VDFN-13(2x3) | DIODES | VDFN-13(2x3) | 516 | ₹134.87 · 516 in stock | View | |
 | AP63357DV-7#C2158014DIODES · VDFN3020-13 | DIODES | VDFN3020-13 | 4,596 | ₹121.64 · 4,596 in stock | View |
 | AP63356DV-7#C2157973DIODES · VDFN3020-13 | DIODES | VDFN3020-13 | 67 | ₹130.09 · 67 in stock | View |
