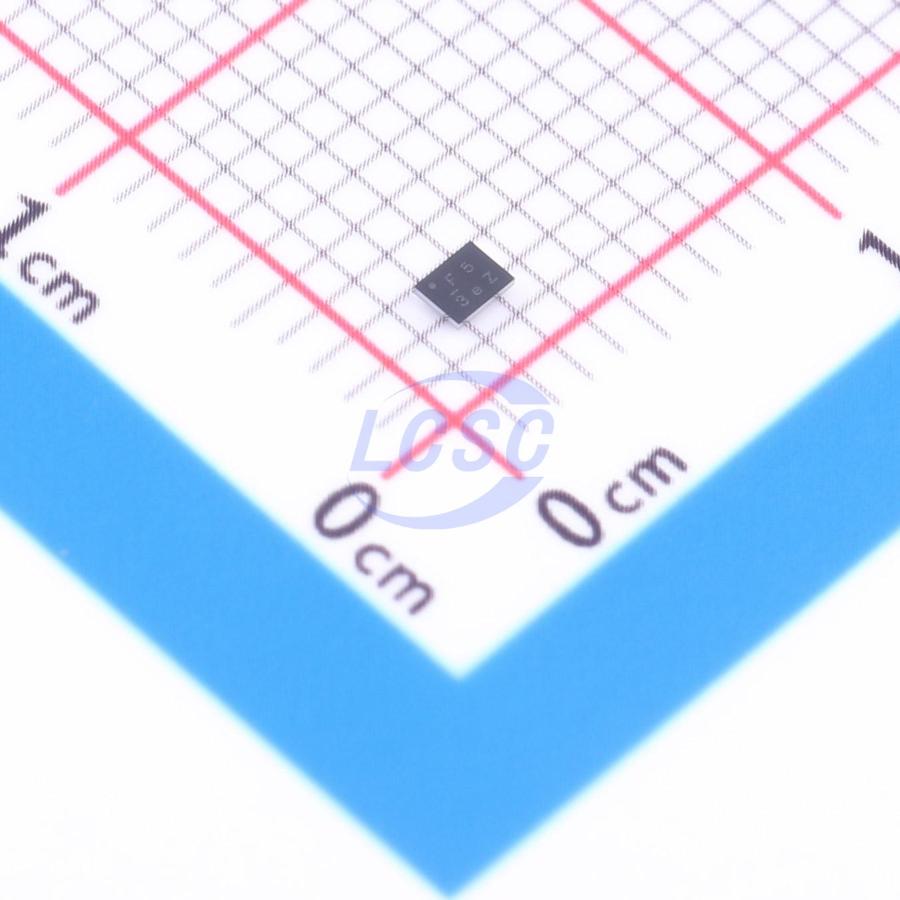

AP72250CJ12-7

The AP72250 is a synchronous boost converter with a minimum 1V input startup voltage and can operate in a wide input voltage range of 0.6V to 5.5V. The device fully integrates a 20mΩ high-side power MOSFET and a 26mΩ low-side power MOSFET to provide high-efficiency step-up DC-DC conversion. The AP72250 device is easily used by minimizing the external component count due to its adoption of peak current mode control, allowing it to handle wide input-to-output ratios. It also achieves outstanding performance in line and load transient responses and seamless transitions between boost and pass-through modes. The device is available in a small 1.75mm×1.35mm, 12-ball WLCSP.

Applications

• Low voltage power cells
• Portable consumer devices
• Supercapacitor charge storages
• USB power supplies
• Power banks
• Industrial metering equipments

Key features

• VIN: 0.6V to 5.5V
• Minimum Input Startup Voltage: 1V
• Output Voltage (VOUT): 1.7V to 5.5V
• 4.7A Switching Current
• 0.8V ± 1% Reference Voltage
• 20μA Low Quiescent Current (Pulse Frequency Modulation)
• 900kHz Switching Frequency
• Up to 89% Efficiency at 5mA Light Load
• Selectable Operation Mode
• Pulse Frequency Modulation (PFM)
• Ultrasonic Mode (USM)
• Forced Pulse Width Modulation (FPWM)
• Power-Good Indicator with 5MΩ Internal Pull-up Resistor
• Protection Circuitry
• Undervoltage Lockout (UVLO)
• Peak Current Limit
• Negative (Valley) Current Limit
• Output Short Circuit Protection (SCP)
• Thermal Shutdown
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
