VBsemi ElecDatasheet (PDF)

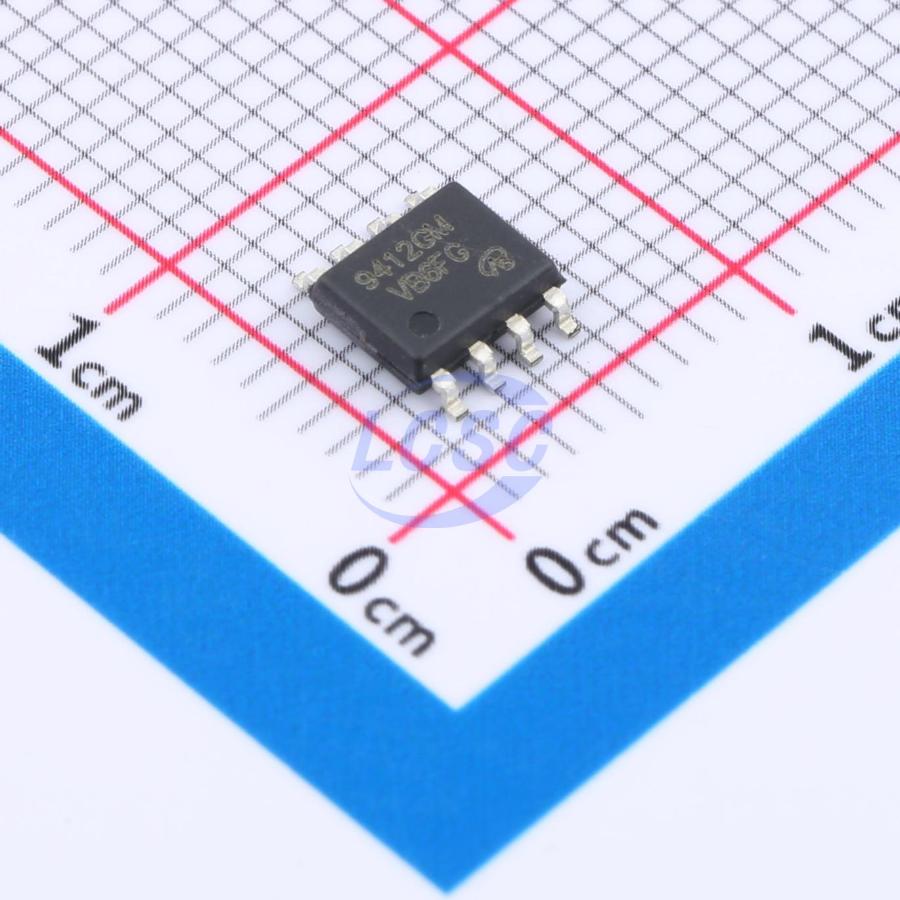

AP9412GM-VB
N-Channel 30V 18A 4.5W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 30V 18A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AP9412GM-VB
- Store part #
- C2680873
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C2680873
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.23 | ₹63.23 |
| 10+ | ₹50.00 | ₹500.00 |
| 30+ | ₹44.33 | ₹1,329.90 |
| 100+ | ₹37.40 | ₹3,740.00 |
| 500+ | ₹34.24 | ₹17,120.00 |
| 1,000+ | ₹32.15 | ₹32,150.00 |
1 × ₹63.23
₹63.23
excl. GST
₹74.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AP9412GM-VB
₹63.23 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 195pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 820pF
- Pd - Power Dissipation
- 4.5W
- Reverse Transfer Capacitance (Crss)
- 73pF
- RDS(on)
- 4mΩ@10V;5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
Applications
- Laptop CPU core
- High-end switching
Key features
- Halogen-free
- Trench power MOSFET
- Optimized for high-side synchronous rectifier operation
- 100% Rg tested
- 100% UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HM4402B-VB#C20417723VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 30 | ₹64.28 · 30 in stock | View |
 | AO4498E-VB#C20626372VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 49 | ₹61.76 · 49 in stock | View |
 | AP9412BGM-HF-VB#C20754924VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹61.76 · 50 in stock | View |
 | SI4386DY-T1-E3-VB#C20754947VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 46 | ₹69.02 · 46 in stock | View |
 | TPC8073-VB#C20755729VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹61.76 · 15 in stock | View |
