VBsemi ElecDatasheet (PDF)

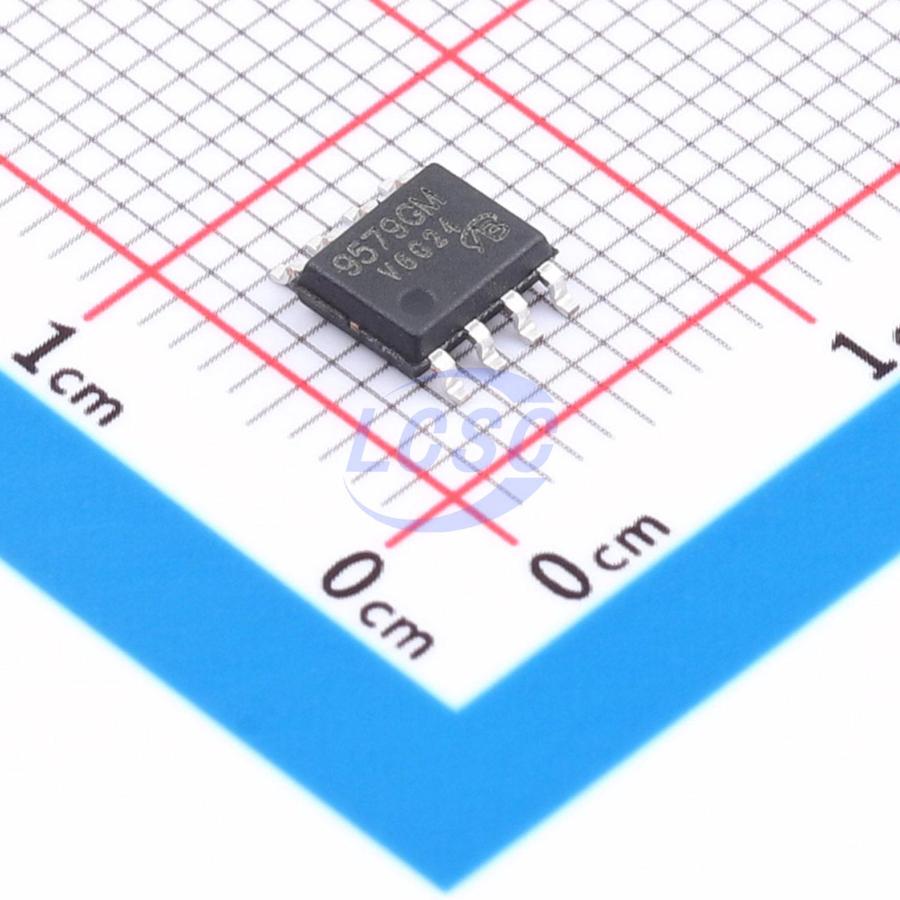

AP9579GM-HF-VB
P-Channel 60V 8A 3.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 60V 8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AP9579GM-HF-VB
- Store part #
- C7463680
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C7463680
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.49 | ₹106.49 |
| 10+ | ₹85.84 | ₹858.40 |
| 30+ | ₹75.41 | ₹2,262.30 |
| 100+ | ₹65.20 | ₹6,520.00 |
| 500+ | ₹58.90 | ₹29,450.00 |
| 1,000+ | ₹55.86 | ₹55,860.00 |
1 × ₹106.49
₹106.49
excl. GST
₹125.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AP9579GM-HF-VB
₹106.49 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 390pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 3.5nF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 290pF
- RDS(on)
- 25mΩ@10V;28mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 76nC@10V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- 100% tested for unclamped inductive switching (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | QM6015S-VB#C725142VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 1 | ₹99.36 · 1 in stock | View |
 | AM4499P-T1-PF-VB#C5878780VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 412 | ₹105.55 · 412 in stock | View |
 | HM4421B-VB#C19626698VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 18 | ₹130.04 · 18 in stock | View |
 | HM4421-VB#C22389482VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | On request | ₹111.03 · 0 in stock | View |
 | 9579GM-HF-VB#C29778793VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹106.25 · 20 in stock | View |
