VBsemi ElecDatasheet (PDF)

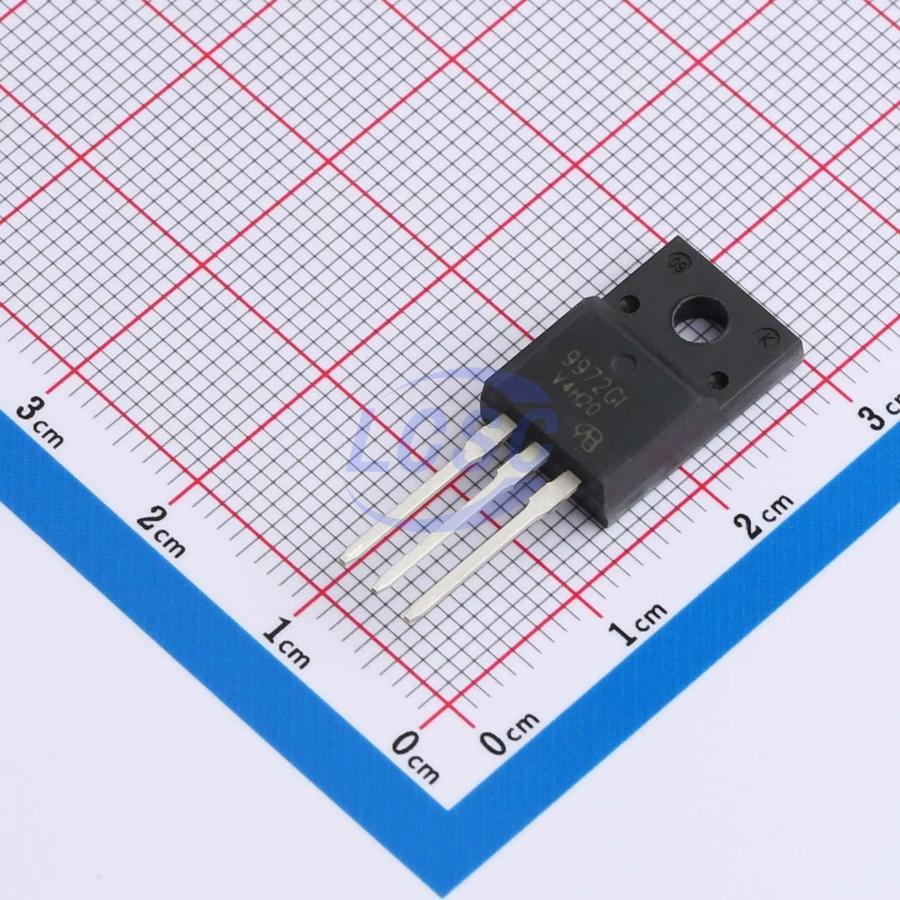

AP9972GI-VB
N-Channel 60V 70A 136W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 60V 70A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AP9972GI-VB
- Store part #
- C29779343
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29779343
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.93 | ₹102.93 |
| 10+ | ₹82.98 | ₹829.80 |
| 50+ | ₹72.90 | ₹3,645.00 |
| 100+ | ₹63.03 | ₹6,303.00 |
| 500+ | ₹56.93 | ₹28,465.00 |
| 1,000+ | ₹53.99 | ₹53,990.00 |
1 × ₹102.93
₹102.93
excl. GST
₹121.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AP9972GI-VB
₹102.93 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.84 g
Overview
Applications
- OR gate applications
- Servers
- DC-DC conversion
Key features
- Junction temperature 175°C
- Trench power MOSFET
- Material classification: RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFIZ48GPBF-VB#C20417669VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 2 | ₹108.38 · 2 in stock | View |
 | IRFI3205PBF-VB#C20755725VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 2 | ₹102.93 · 2 in stock | View |
 | FQPF85N06-VB#C692964VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 16 | ₹131.55 · 16 in stock | View |
 | IRLI3705NPBF-VB#C7463517VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 100 | ₹83.81 · 100 in stock | View |
 | FDPF55N06-VB#C7494487VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 8 | ₹108.38 · 8 in stock | View |
