VBsemi ElecDatasheet (PDF)

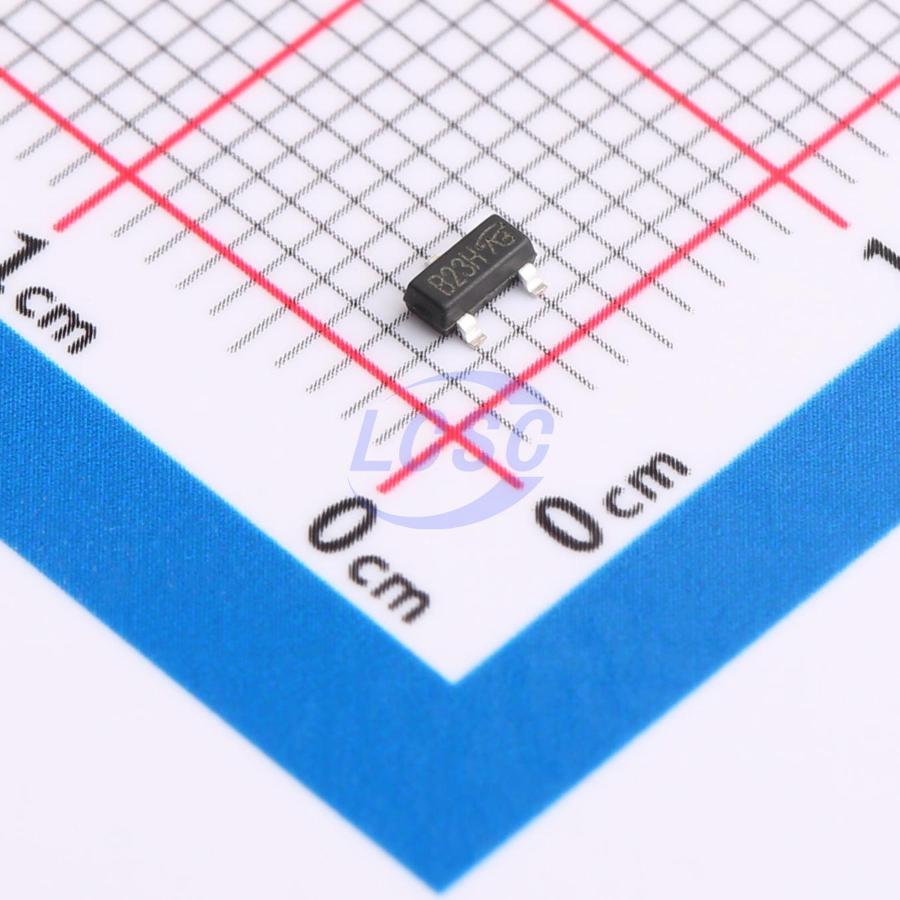

APM2303AC-TRL-VB
P-Channel 30V 5.4A 1.6W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 30V 5.4A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- APM2303AC-TRL-VB
- Store part #
- C5456484
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C5456484
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.10 | ₹65.50 |
| 50+ | ₹10.43 | ₹521.50 |
| 150+ | ₹9.09 | ₹1,363.50 |
| 500+ | ₹8.10 | ₹4,050.00 |
| 3,000+ | ₹7.29 | ₹21,870.00 |
| 6,000+ | ₹6.89 | ₹41,340.00 |
5 × ₹13.10
₹65.50
excl. GST
₹77.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
APM2303AC-TRL-VB
₹65.50 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 150pF
- Current - Continuous Drain(Id)
- 5.4A
- Ciss-Input Capacitance
- 1.295nF
- Pd - Power Dissipation
- 1.6W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 46mΩ@10V;49mΩ@6V;54mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 24nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
Applications
- Mobile computing applications
- Load switch
- Notebook adapter switch
- DC/DC converter
Key features
- Trench power MOSFET
- 100% gate resistance (Rg) tested
