VBsemi ElecDatasheet (PDF)

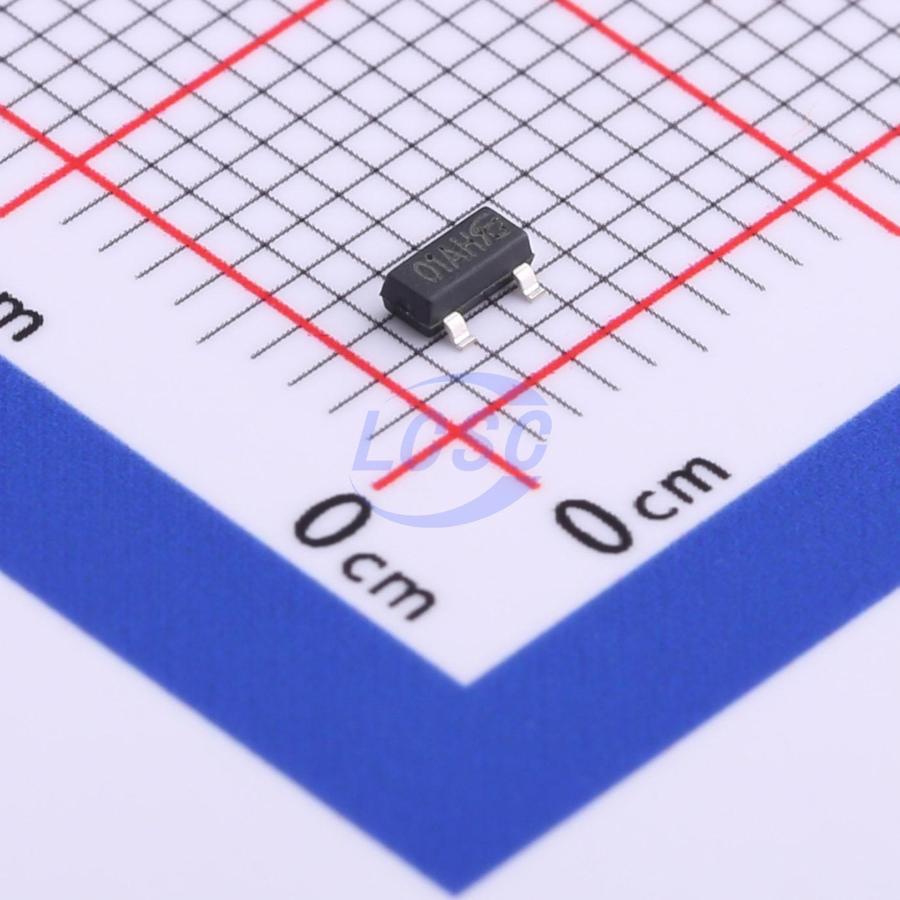

APM2321AC-VB
P-Channel 20V 3.5A 2.5W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 20V 3.5A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- APM2321AC-VB
- Store part #
- C878852
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C878852
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.26 | ₹92.60 |
| 100+ | ₹7.45 | ₹745.00 |
| 300+ | ₹6.54 | ₹1,962.00 |
| 3,000+ | ₹5.86 | ₹17,580.00 |
| 6,000+ | ₹5.32 | ₹31,920.00 |
| 9,000+ | ₹5.04 | ₹45,360.00 |
10 × ₹9.26
₹92.60
excl. GST
₹109.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
APM2321AC-VB
₹92.60 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 3.5A
- Ciss-Input Capacitance
- 835pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 6.4nC@2.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
Applications
- Load switch
- Power amplifier (PA) switch
- DC/DC converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTR1P02LT3G-VB#C7568785VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 170 | ₹9.10 · 170 in stock | View |
 | CMN2305M-VB#C878849VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 10 | ₹9.01 · 10 in stock | View |
 | AP2305GN-VB#C878980VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹9.67 · 100 in stock | View |
 | IM2132-VB#C879034VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹9.26 · 50 in stock | View |
 | AO3415A-VB#C879135VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 20 | ₹10.53 · 20 in stock | View |
