VBsemi ElecDatasheet (PDF)

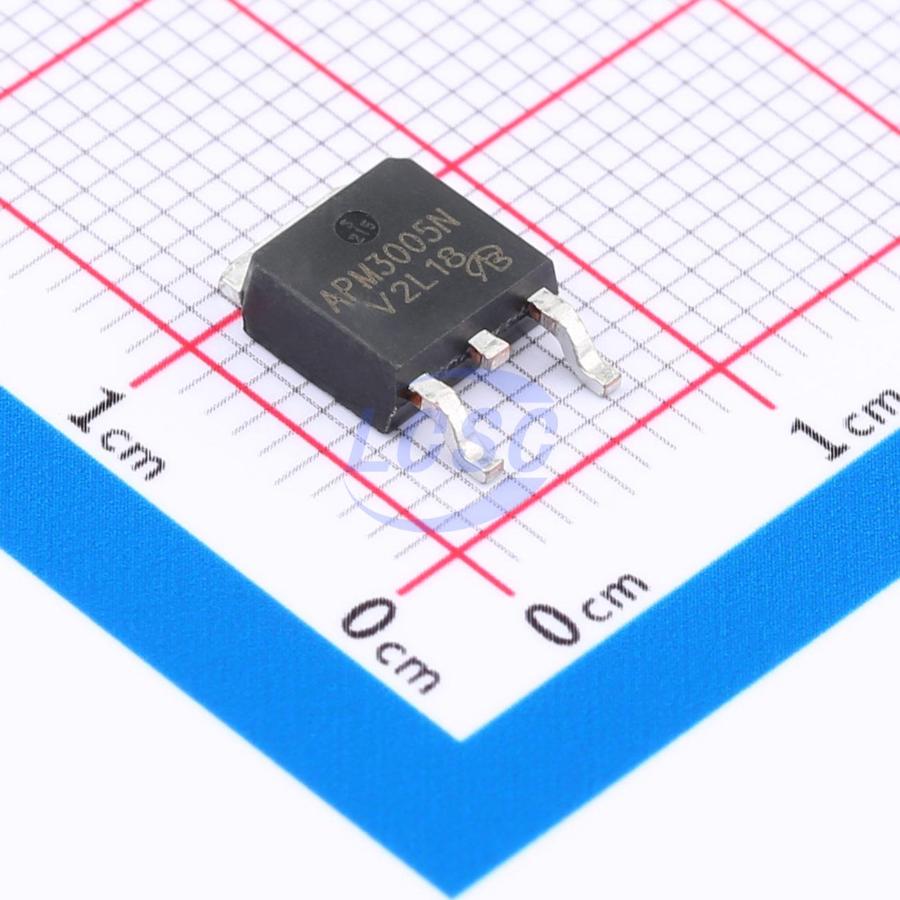

APM3005NU-VB
N-Channel 30V 80A 205W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 80A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- APM3005NU-VB
- Store part #
- C5355767
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C5355767
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.10 | ₹52.10 |
| 10+ | ₹41.17 | ₹411.70 |
| 30+ | ₹36.55 | ₹1,096.50 |
| 100+ | ₹30.68 | ₹3,068.00 |
| 500+ | ₹28.15 | ₹14,075.00 |
| 1,000+ | ₹26.68 | ₹26,680.00 |
1 × ₹52.10
₹52.10
excl. GST
₹61.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
APM3005NU-VB
₹52.10 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 205W
- Reverse Transfer Capacitance (Crss)
- 270pF
- RDS(on)
- 5mΩ@10V;6mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 61nC@10V;31.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
Applications
- OR gate function - Server - DC/DC conversion
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP72T02GH-VB#C22389352VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 58 | ₹67.92 · 58 in stock | View |
 | 2SK4178-ZK-E1-AY-VB#C22389897VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹50.84 · 10 in stock | View |
 | 2SK4080-ZK-E2-AY-VB#C5179551VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 48 | ₹53.99 · 48 in stock | View |
 | ISL9N310AD3ST-VB#C558185VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 34 | ₹54.41 · 34 in stock | View |
 | ISL9N308AD3ST-VB#C693344VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 22 | ₹50.00 · 22 in stock | View |
