VBsemi ElecDatasheet (PDF)

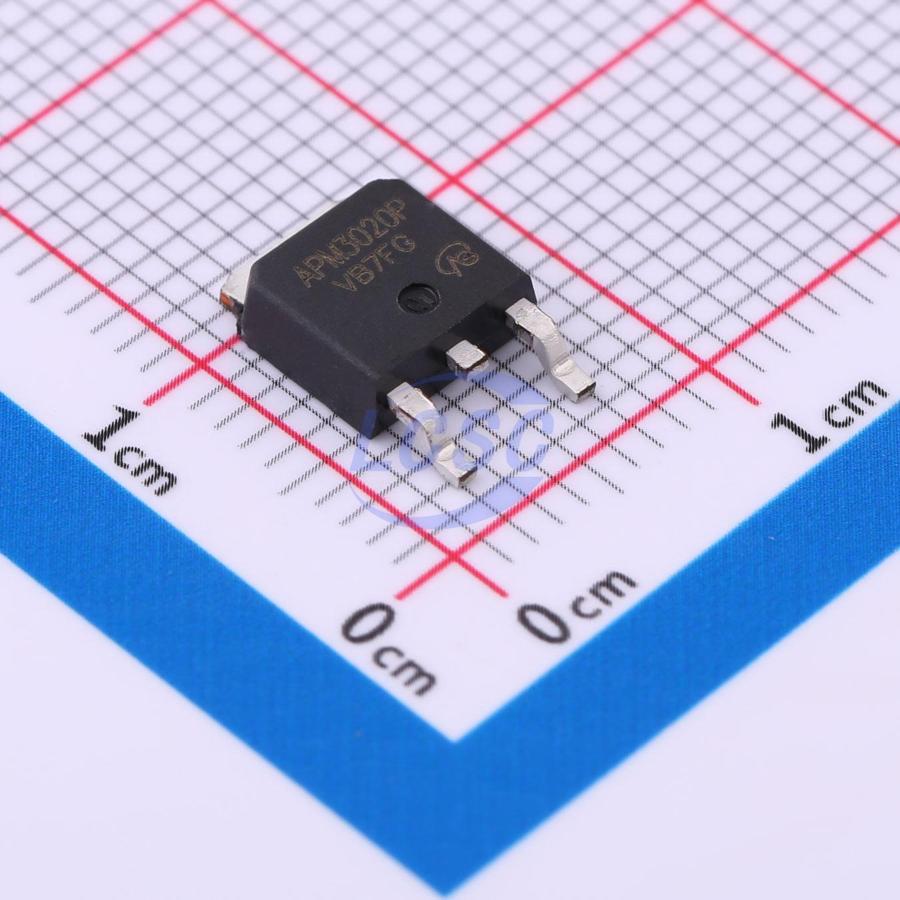

APM3020PUC-TRL-VB
P-Channel 30V 40A 27W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 30V 40A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- APM3020PUC-TRL-VB
- Store part #
- C5441218
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C5441218
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.54 | ₹70.54 |
| 10+ | ₹55.95 | ₹559.50 |
| 30+ | ₹49.64 | ₹1,489.20 |
| 100+ | ₹41.81 | ₹4,181.00 |
| 500+ | ₹38.33 | ₹19,165.00 |
| 1,000+ | ₹36.36 | ₹36,360.00 |
1 × ₹70.54
₹70.54
excl. GST
₹83.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
APM3020PUC-TRL-VB
₹70.54 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 1.455nF
- Pd - Power Dissipation
- 27W
- Reverse Transfer Capacitance (Crss)
- 145pF
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 13nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.644 g
Overview
Applications
- Load Switch - Battery Switch
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STU417S-VB#C558293VBsemi Elec · TO-252-2 | VBsemi Elec | TO-252-2 | 13 | ₹68.02 · 13 in stock | View |
 | AM40P03-20D-T1-PF-VB#C5878779VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 1 | ₹67.22 · 1 in stock | View |
 | STD30PF03LT4-VB#C5441256VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 35 | ₹70.54 · 35 in stock | View |
 | CEU4311-VB#C558107VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 3 | ₹68.28 · 3 in stock | View |
 | SM3020PSU-VB#C19711284VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹65.75 · 30 in stock | View |
