VBsemi ElecDatasheet (PDF)

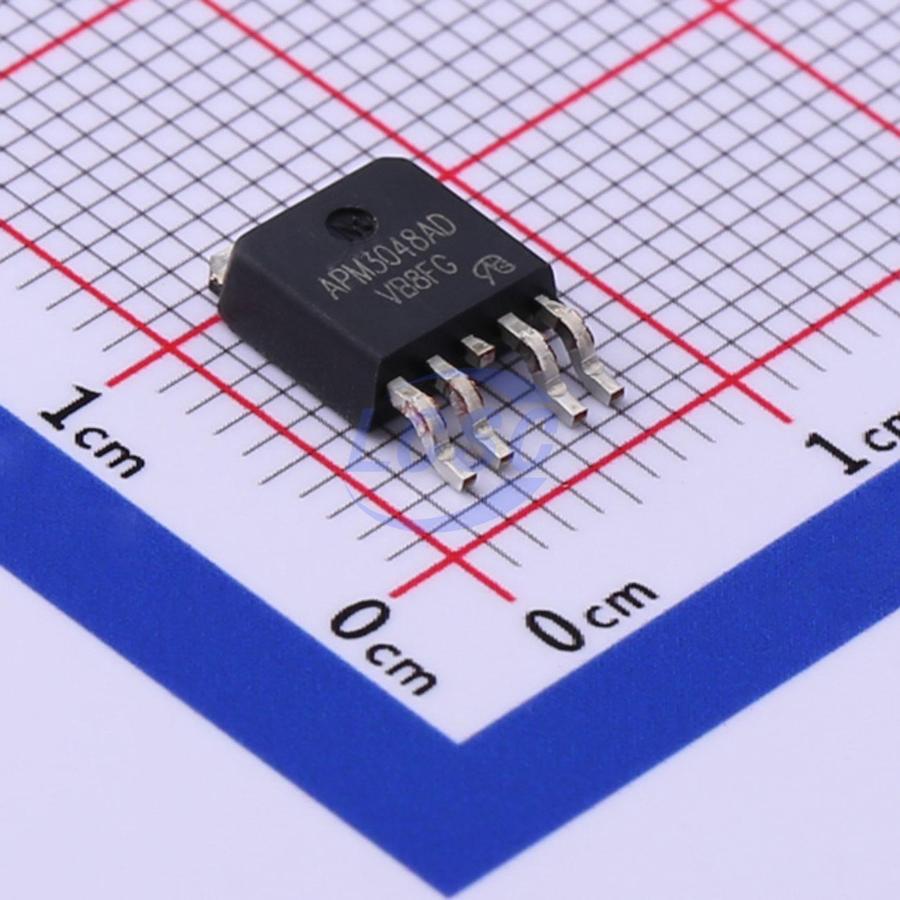

APM3048ADU4-VB
N-Channel+P-Channel 60V 35A 50W Surface Mount TO-252-4L
TO-252-4LRoHSActive
MOSFET N-CH+P-CH ARR 60V 35A TO-252-4L
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- APM3048ADU4-VB
- Store part #
- C558091
- Package / case
- TO-252-4L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C558091
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.50 | ₹109.50 |
| 10+ | ₹91.43 | ₹914.30 |
| 30+ | ₹82.52 | ₹2,475.60 |
| 100+ | ₹73.59 | ₹7,359.00 |
| 500+ | ₹54.86 | ₹27,430.00 |
| 1,000+ | ₹52.03 | ₹52,030.00 |
1 × ₹109.50
₹109.50
excl. GST
₹129.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
APM3048ADU4-VB
₹109.50 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V;60V
- Output Capacitance(Coss)
- 84pF
- Current - Continuous Drain(Id)
- 35A;19A
- Ciss-Input Capacitance
- 1.5nF;1.18nF
- Pd - Power Dissipation
- 50W
- Reverse Transfer Capacitance (Crss)
- 79pF;60pF
- RDS(on)
- 30mΩ@10V;50mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 9nC@4.5V;10nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.46 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
- N-channel
- P-channel
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
